Set The Steering Feel Torque To Zero Procedures

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the self-diagnosis connector (16 pins) located in the lower of driver side crash pad to KDS.
  2. Turn the self-diagnosis device after ignition is ON.
  3. Align the steering wheel to straight ahead position.
  4. Release the steering wheel.
  5. On the KDS screen, select "Vehicle" and "Motor Driven Power Steering" and select OK.
  6. Select "Set the steering feel torque to zero"

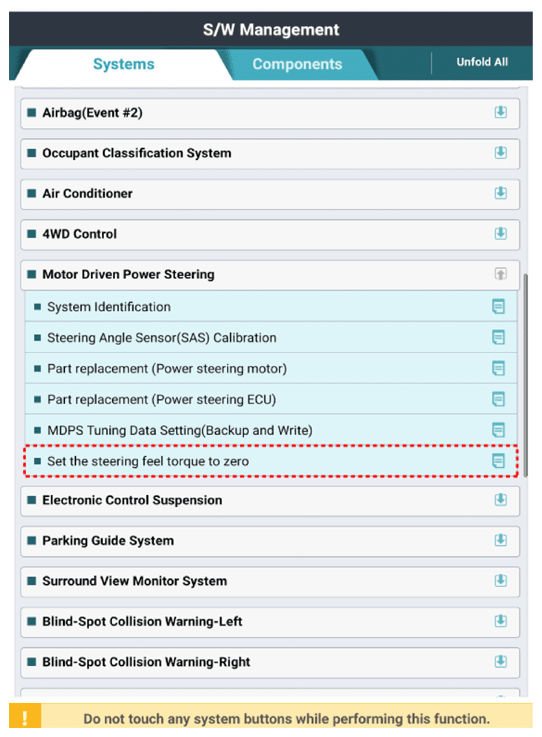

G14958154Courtesy of KIA MOTORS AMERICA, INC.

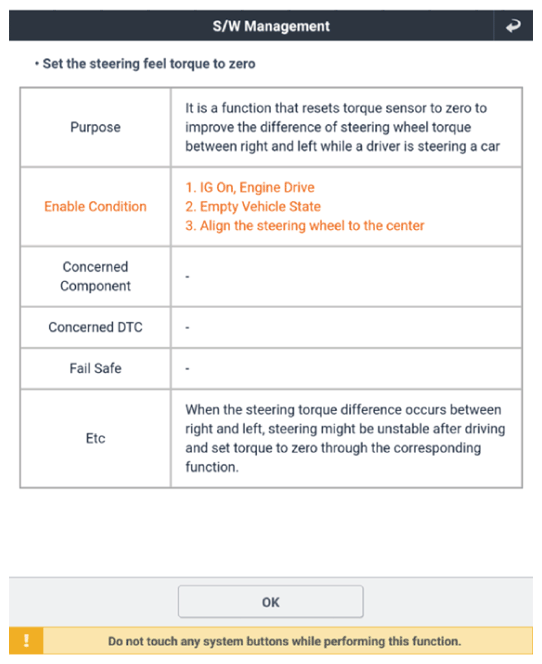

G14958155Courtesy of KIA MOTORS AMERICA, INC.

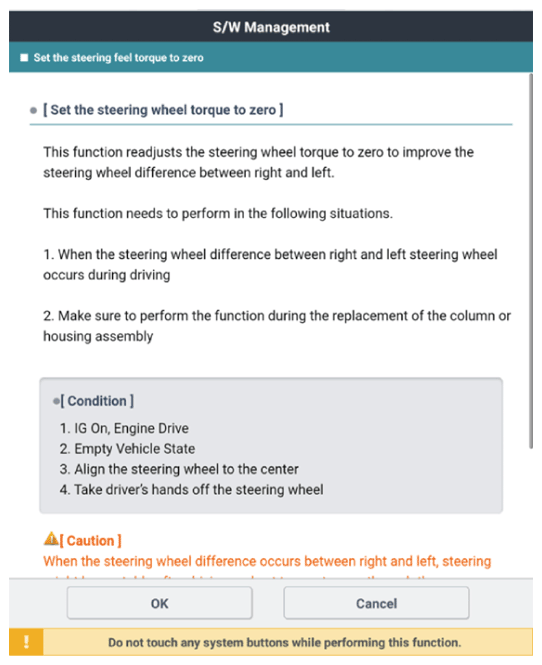

G14958156Courtesy of KIA MOTORS AMERICA, INC.
