MDPS Tuning Data Setting Procedure

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
  1. Select "MDPS Tuning Data Setting (Backup and Write)"
  2. Proceed with the test according to the screen instructions.

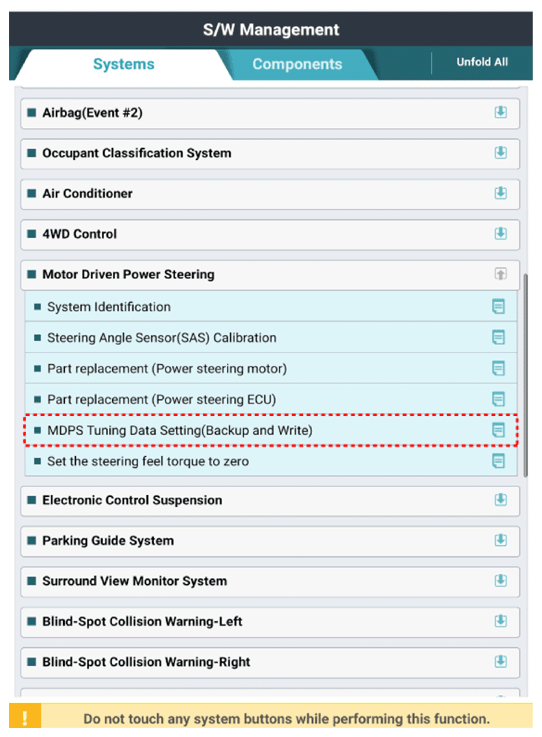

    G14958147Courtesy of KIA MOTORS AMERICA, INC.

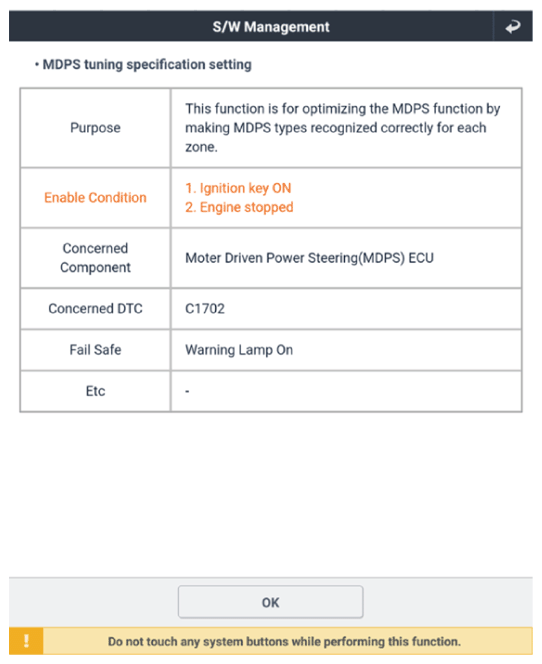

    G14958148Courtesy of KIA MOTORS AMERICA, INC.
  3. Select "C2" Manual Button.

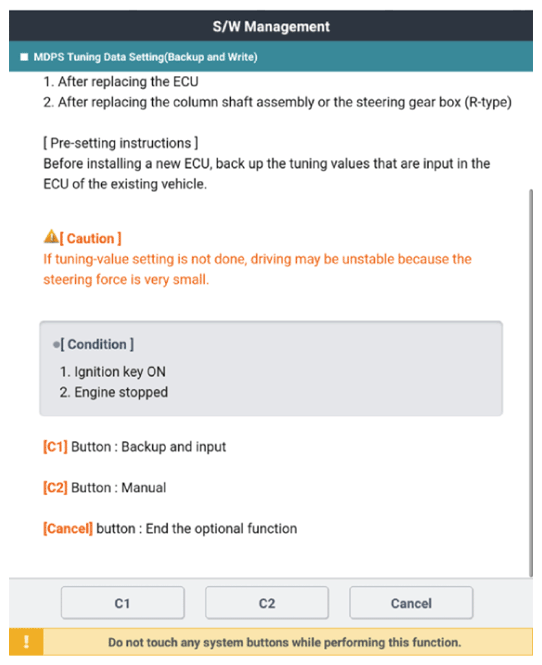

G14958149Courtesy of KIA MOTORS AMERICA, INC.

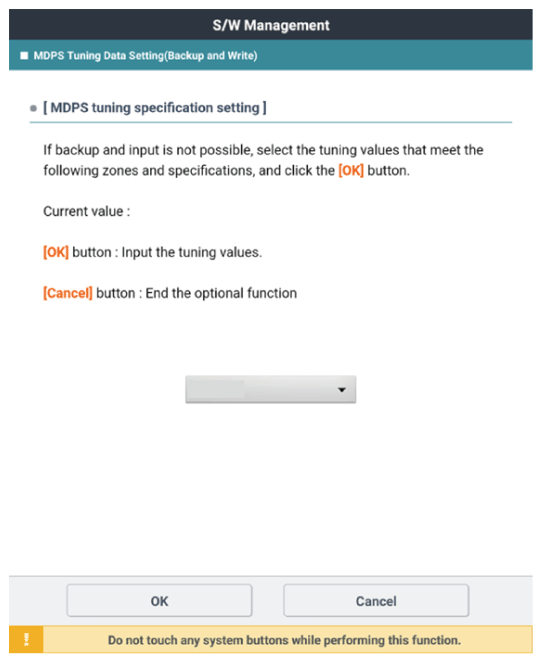

G14958150Courtesy of KIA MOTORS AMERICA, INC.

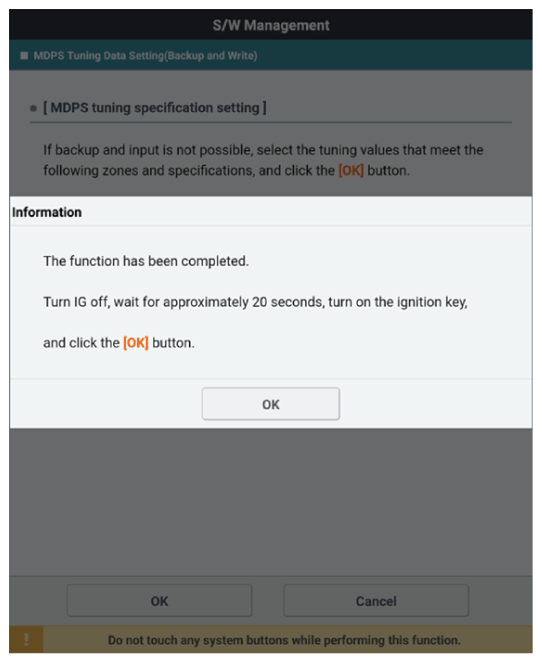

G14958151Courtesy of KIA MOTORS AMERICA, INC.
