Repair Procedures: Installation
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Install the component to the specified torque.

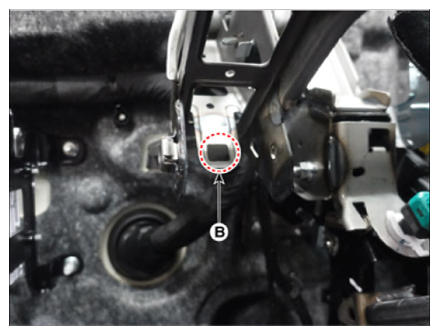

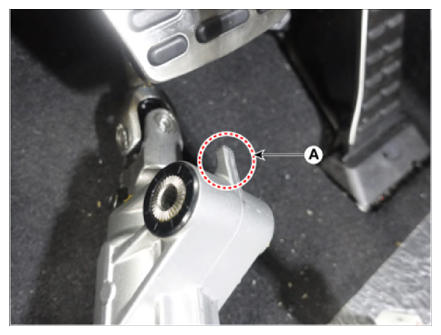

- When assembling the MDPS assembly, insert the dowel pin (A) into the groove of the MDPS bracket (B).
- Install in the reverse order of removal.
- Perform the "MDPS Tuning Data Setting" by KDS.
(Refer to MDPS System - "DIAGNOSIS WITH KDS ")
- Perform the "SAS Calibration" and "Set the steering feel torque to zero" by KDS.
(Refer to MDPS System - "DIAGNOSIS WITH KDS ")
