Universal Joint Assembly

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

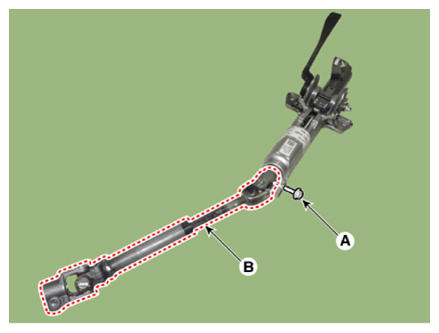

  1. Remove the bolt (A) to separate the steering column assembly and the universal joint assembly (B).

    Tightening torque:

    49.0 - 58.8 N.m (5.0 - 6.0 kgf.m, 36.2 - 43.4 lb.ft)

G14958167Courtesy of KIA MOTORS AMERICA, INC.
NOTE: Do not reuse the bolt.
