Key Lock Assembly

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

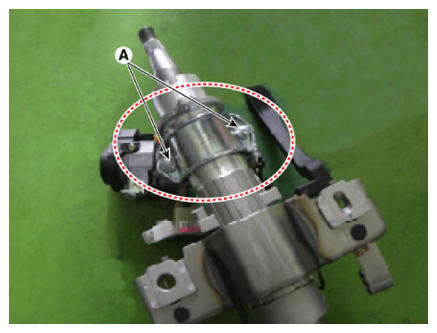

  1. Make a groove on the head of special bolts (A) with a punch.
    G14958168Courtesy of KIA MOTORS AMERICA, INC.
  2. Remove the special bolt using a screw driver and then remove the key lock assembly from the steering column assembly.
