Connector And Terminal Function
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

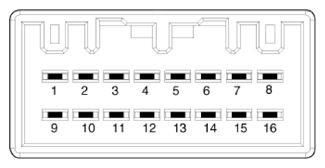

| Connector A | ||
|---|---|---|
| Pin | Standard | R-MDPS |
| 1 | Rear washer switch power | Rear washer switch power |
| 2 | Headlamp low back up signal | Headlamp low back up signal |
| 3 | Front wiper INT volume signal | - |
| 4 | Ground | - |
| 5 | Ground (IBU) | Ground |
| 6 | Front wiper switch signal | - |
| 7 | Front wiper low back up signal | Front wiper low back up signal |
| 8 | IGN2 | IGN2 |
| 9 | Front washer motor switch power | Front washer motor switch power |
| 10 | Light switch signal | C-CAN (High) |
| 11 | Rear washer switch signal | C-CAN (Low) |
| 12 | Fog lamp switch signal | IGN1 |
| 13 | Headlamp passing/high beam switch signal | - |
| 14 | Turn signal switch (LH) | B-CAN (High) |
| 15 | Turn signal switch (RH) | B-CAN (Low) |
| 16 | - | Battery (+) |
