Description & Operation: Description
WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
The heated steering wheel system improves the thermal comfort of the driver by heated the steering wheel when manually selected.

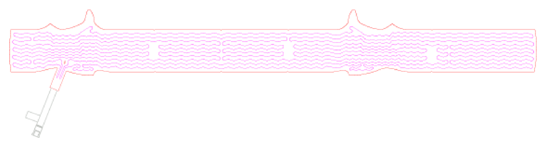

- Heated pad
| Item | Specification |
|---|---|
| Voltage | 85W ± 10 % (13.5V) |
| Heated pad resistance | 1.75 ± 0.2Ω [21 - 23°C (69.8 - 73.4°F)] |
| NTC resistance | 10.0 kΩ ± 5% [25°C (77°F)] |
| 8.875 - 11.27 kΩ [at 23 - 27°C (73.4 - 80.6°F)] |
