Repair Procedures: Replacement

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the front seat assembly.

    (Refer to Front Seat - "FRONT SEAT ASSEMBLY ")

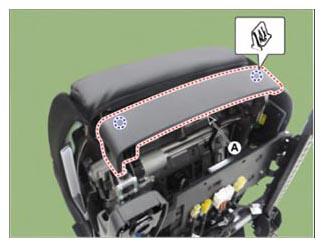

  2. Remove the front seat forward extension cover (A) by using a flat-head screwdriver or remover
    G14942163Courtesy of KIA MOTORS AMERICA, INC.

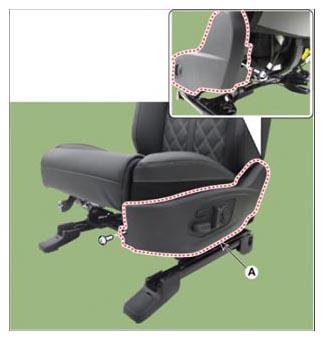

  3. Remove the front seat outer shield cover (A) after removing the mounting screws.
    G14942164Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: Be careful not to damage the hook and bracket.

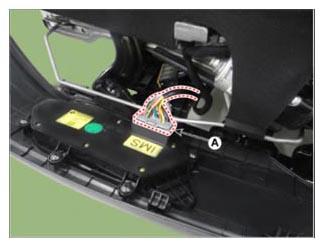

  4. Disconnect the front seat power switch connector (A).
    G14942165Courtesy of KIA MOTORS AMERICA, INC.
