Repair Procedures: Removal

WARNING: This page is about a different car, the 2024 Kia Sorento. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Information

When replacing the passenger seat cushion, replace both the seat cushion assembly and the Occupant Detecting System (ODS) unit. (However, the covering can be replaced alone.)
When replacing passenger seat cushion frame (seat track), existing ODS unit are reused.
(Refer to Restraint - "OCCUPANT DETECTING SYSTEM (ODS) ")

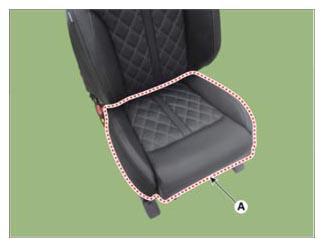

When replacing passenger seat cushion	When replacing the seat cushion frame
Courtesy of KIA MOTORS AMERICA, INC. Replacement of seat cushion and ODS	Courtesy of KIA MOTORS AMERICA, INC. Reuse of existing ODS

Remove the front seat outer shield cover.
(Refer to Front Seat - "FRONT SEAT OUTER SHIELD COVER ")
Remove the front seat inner shield cover.
(Refer to Front Seat - "FRONT SEAT INNER SHIELD COVER ")

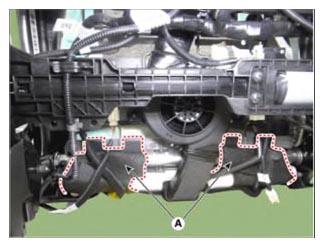

Remove the front seat lower seat cover hooks (A).

Courtesy of KIA MOTORS AMERICA, INC.

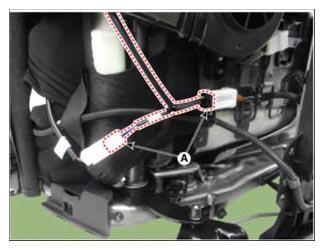

Disconnect the front seat cushion connectors (A).

Courtesy of KIA MOTORS AMERICA, INC.

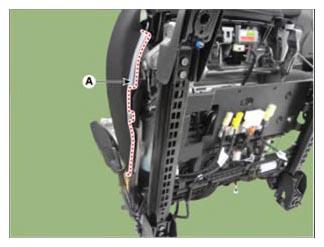

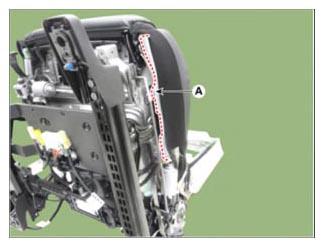

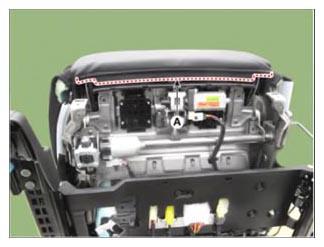

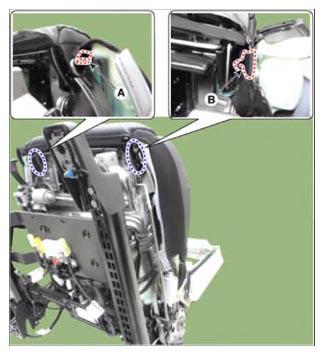

Remove the seat cover hooks (A) by using a flat-head screwdriver or remover.
[Upper]

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

[LH]

Courtesy of KIA MOTORS AMERICA, INC.

[RH]

Courtesy of KIA MOTORS AMERICA, INC.

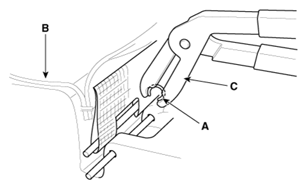

Remove the clips (B) after remove the seat cover hooks (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear seat cushion assembly (A) from the rear seat cushion frame.

Courtesy of KIA MOTORS AMERICA, INC.

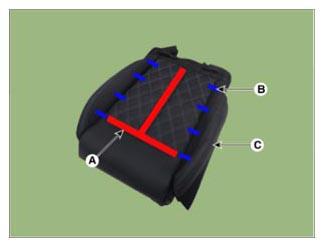

Remove the front seat cushion cover (C) by removing the Velcro tape (A) and the hog ring clip (B) from inside the front seat cushion cover.
NOTE: Be careful not to deviate from the pads, insert wires, and Velcro tape.

Courtesy of KIA MOTORS AMERICA, INC.

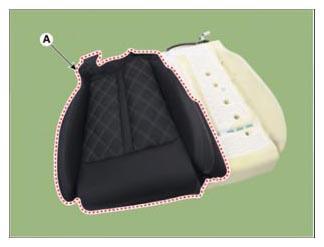

Remove the front seat cushion cover (A) from the front seat cushion pad.

Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.

Courtesy of KIA MOTORS AMERICA, INC.
