Rear Muffler

Remove the rear muffler (A).
Tightening torque:

40.2 - 59.8 N.m (4.1 - 6.1 kgf.m, 29.7 - 44.1 lb.ft)

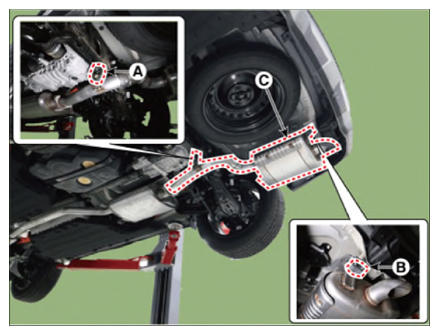

1. Remove the rear muffler hanger bracket (A).
2. Remove the rear muffler hanger bracket (B).
3. Remove the rear muffler (C).
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When installing, replace with new gaskets.
Install in the reverse order of removal.
