Front Muffler

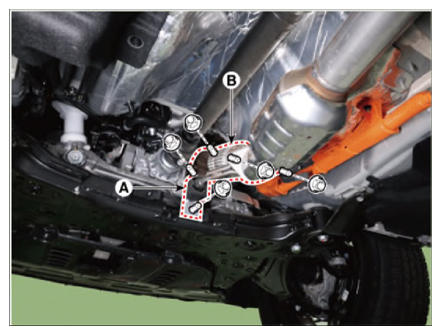

  1. Remove the front muffler.
    1. Remove the front muffler hanger bracket (A).

      Tightening torque:

      19.6 - 24.5 N.m (2.0 - 2.5 kgf.m, 14.5 - 18.1 lb.ft)

    2. Remove the front muffler (B).

      Tightening torque:

      40.2 - 59.8 N.m (4.1 - 6.1 kgf.m, 29.7 - 44.1 lb.ft)

      G14937184Courtesy of KIA MOTORS AMERICA, INC.
      NOTE: When installing, replace with new gaskets.
  2. Install in the reverse order of removal.
