Catalytic Converter & Center Muffler Assembly

  1. Remove the catalytic converter & center muffler assembly.

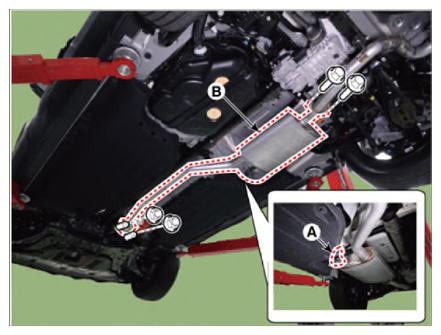

    1. Remove the catalytic converter & center muffler assembly hanger (A).
    2. Remove the catalytic converter & center muffler assembly (B).

    Tightening torque:

    40.2 - 59.8 N.m (4.1 - 6.1 kgf.m, 29.7 - 44.1 lb.ft)

    G14937185Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: When installing, replace with new gaskets.
  2. Install in the reverse order of removal.
