Removal and Installation
- Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

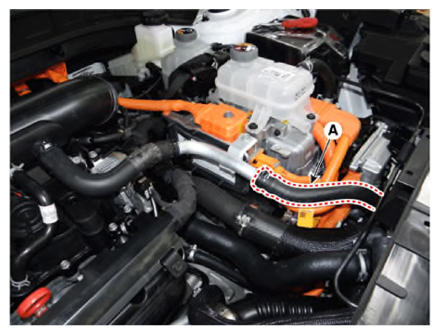

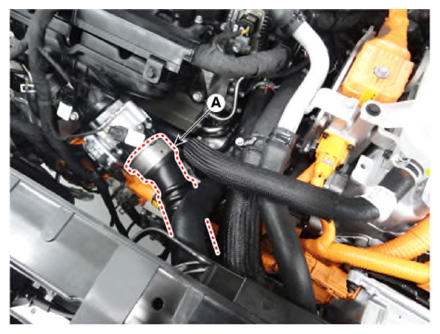

- Disconnect the RCV hose (A).

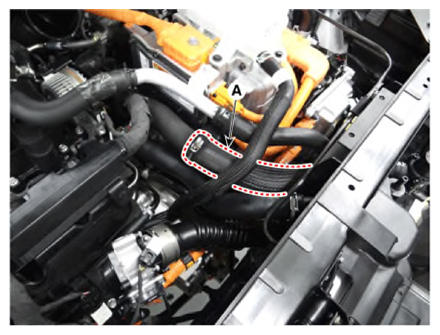

- Disconnect the intercooler inlet hose (A).
Tightening torque:
4.9 - 6.7 N.m (0.5 - 0.7 kgf.m, 3.6 - 5.0 lb.ft, 43.4 - 60.8 lb.in)
- Disconnect the intercooler outlet hose (A).
Information

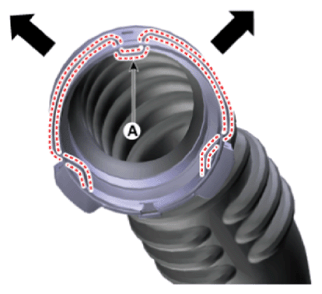

- To remove the intercooler tube, pull out the quick connect clip (A) in the direction of the arrow shown below.

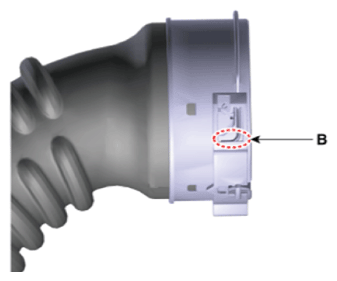

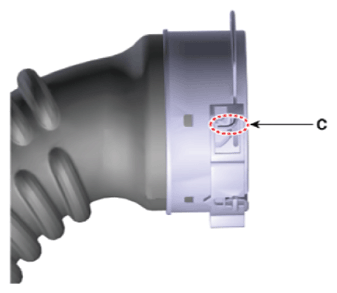

- As shown in the figure below, move the quick connect clamp B to C, and then pull out the quick connect tube.
- To remove the intercooler tube, pull out the quick connect clip (A) in the direction of the arrow shown below.
- Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "ENGINE ROOM UNDER COVER ")
- Remove the front bumper assembly.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER ASSEMBLY ")
- Remove the virtual engine sound speaker.
(Refer to Body Electrical System - "VIRTUAL ENGINE SOUND UNIT & SPEAKER ASSEMBLY ")
- Remove the front bumper beam.
(Refer to Body (Interior and Exterior) - "FRONT BUMPER BEAM ASSEMBLY ")

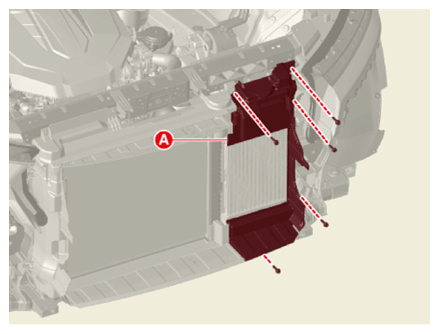

- Remove the intercooler air guide (A).
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

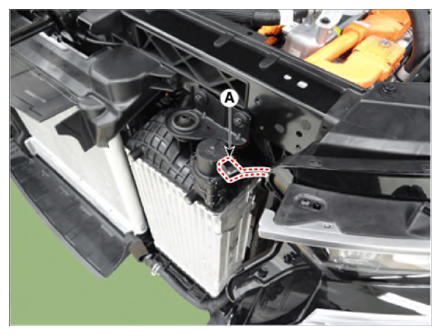

- Disconnect the Intake Temperature Sensor (ITS) connector (A)

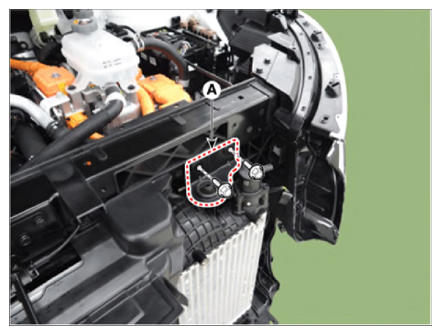

- Remove the intercooler upper mounting bracket (A) from the intercooler.
Tightening torque:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb.ft)

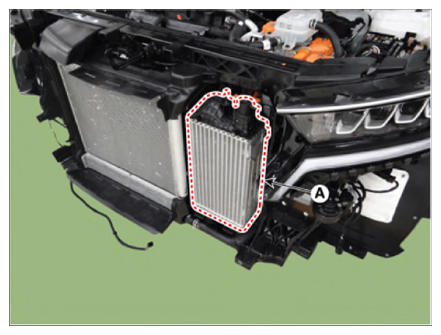

- Remove the intercooler (A).
- Install in the reverse order of removal.
