Components & Components Location: Components

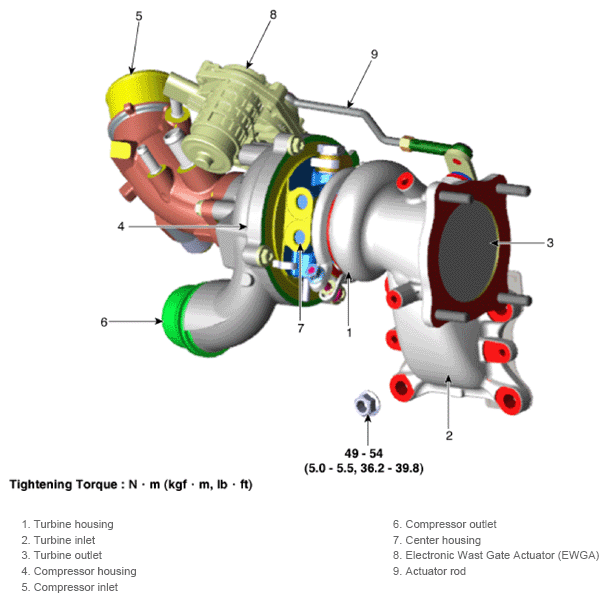

Fig 1: Exhaust Manifold, Turbo Manifold Module And Catalytic Converter Components Location With Torque Specification (1 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.

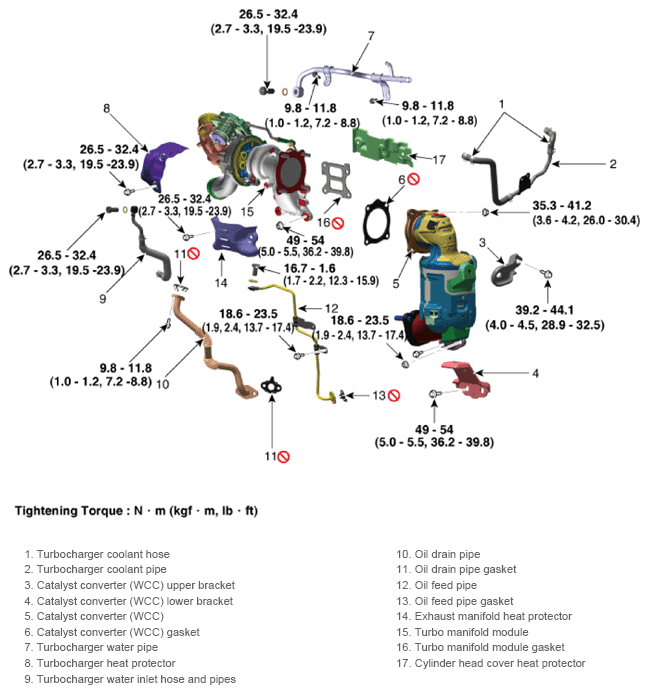

Fig 2: Exhaust Manifold, Turbo Manifold Module And Catalytic Converter Components Location With Torque Specification (2 Of 2)

Courtesy of KIA MOTORS AMERICA, INC.
