Air Cleaner Element Replacement

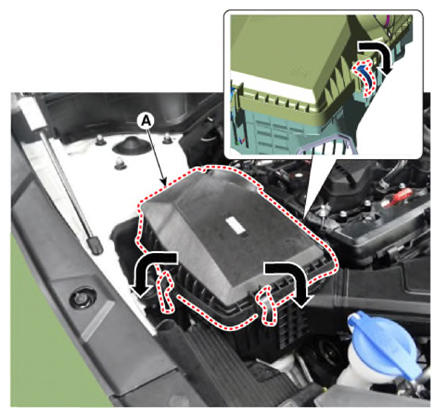

  1. Pull the clamp and remove the air cleaner cover (A).
    G14937120Courtesy of KIA MOTORS AMERICA, INC.

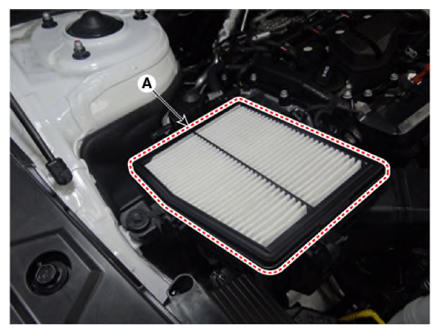

  2. Replace the air cleaner element (A) with a new one.
    G14937121Courtesy of KIA MOTORS AMERICA, INC.
    NOTE: If there is foreign matter inside the air cleaner assembly, clean the inside and replace the element.

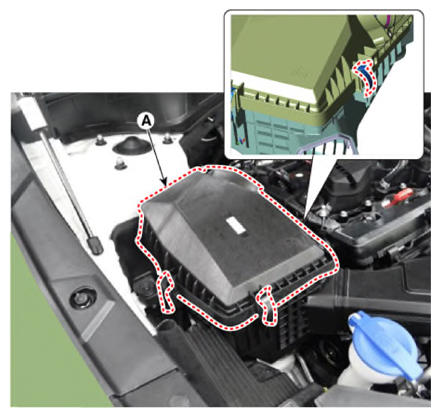

  3. Close the air cleaner cover (A) and fasten the clamp.
G14937122Courtesy of KIA MOTORS AMERICA, INC.

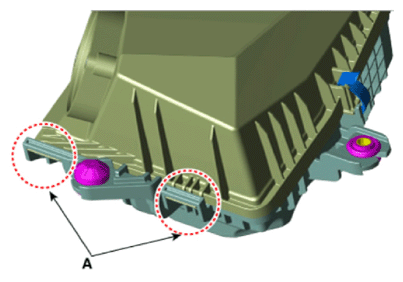

NOTE: When closing the air cleaner cover, insert the air cleaner element (A) into the air cleaner body and fasten the clamp.
G14937123Courtesy of KIA MOTORS AMERICA, INC.
