Air Cleaner Assembly

Disconnect the battery negative terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

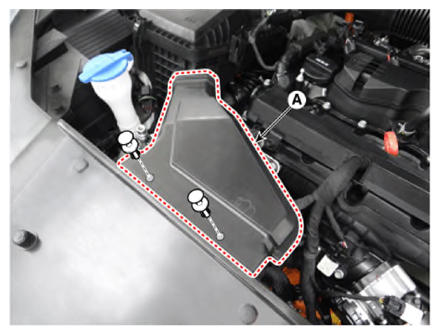

Remove the air duct (A).

Courtesy of KIA MOTORS AMERICA, INC.
Remove the engine cover.
(Refer to Engine and Transaxle Assembly - "ENGINE COVER ")

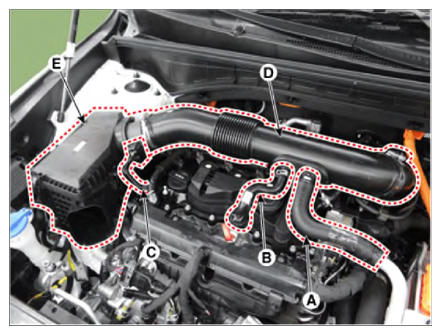

Remove the air cleaner assembly.

Disconnect the RCV hose (A).
Disconnect the outside air introduction hose (B).
Disconnect the airflow sensor connector (C).
Disconnect the air intake hose (D).
Tightening torque:

Hose clamp: 2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft, 26.0 - 43.4 lb.in)

Remove the air cleaner assembly (E).

Tightening torque:

7.8 - 9.8 N.m (0.8 - 1.0 kgf.m, 5.8 - 7.2 lb.ft)
