Monitor KDS Data

Inspection Condition	Inspection Procedure	Reference

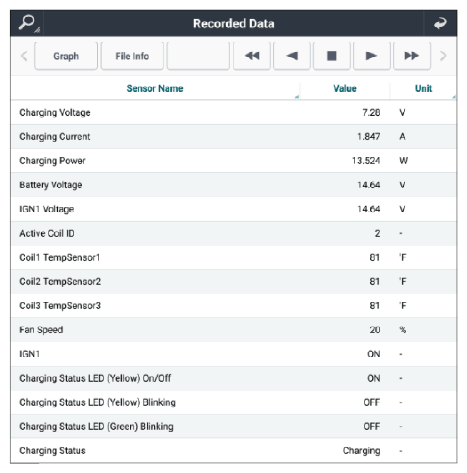

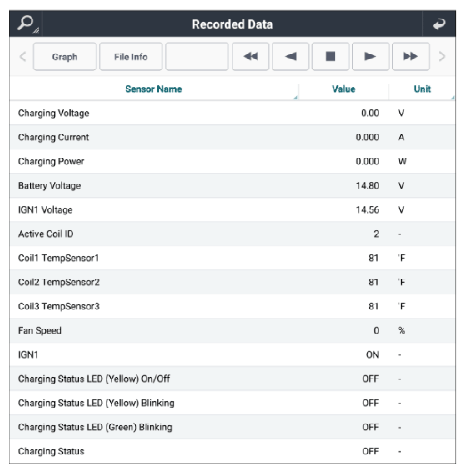

Engine "ON". Warm up to normal temperature.	Connect KDS to "Data Link Connector (DLC)". Monitor parameters in "Current Data" with KDS	Fig.1 to 2

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Good

Fault is intermittent caused by poor contact in WPC's connector or was repaired and WPC memory was not cleared.
Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
Repair or replace as necessary, go to "VERIFICATION OF REPAIR " procedure.

No Good
