Circuit Inspection

G14942833

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	EPB actuator-RH connector	2 (motor (+))	Chassis ground	-	Fig.1 to 3
Ignition "ON".	EPB actuator-RH connector	1 (motor (-))	Chassis ground	-	Fig.1 to 3
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EPB actuator-RH connector	2 (motor (+))	IEB module connector	3 (motor (+))	Approx. below 1Ω
	EPB actuator-RH connector	1 (motor (-))	IEB module connector	2 (motor (-))	Approx. below 1Ω
	EPB actuator-RH connector	1 (motor (-))	Chassis ground	-	Approx. below 1Ω

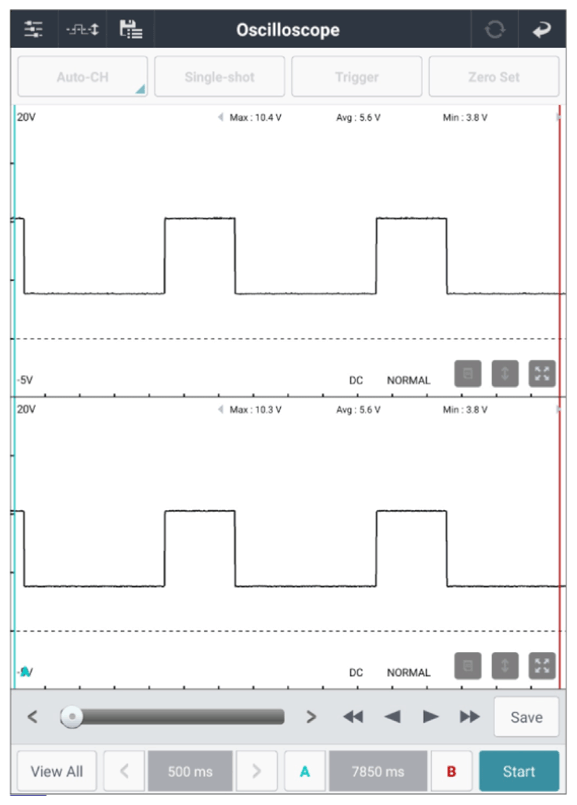

G14942834

Courtesy of KIA MOTORS AMERICA, INC.

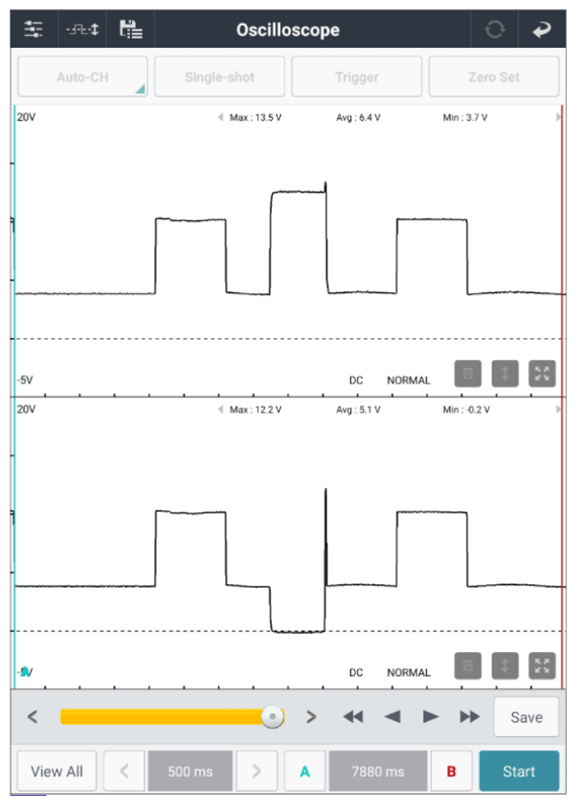

G14942835

Courtesy of KIA MOTORS AMERICA, INC.

G14942836

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
