Circuit Inspection
| Module Circuit Inspection | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
Front console switch connector | 1, 28 (power) | Chassis ground | - | B+ |
|
Front console switch connector | 14 (ground) | Chassis ground | - | Approx. below 1Ω |
Good
- Go to "CAN communication circuit Inspection (E-CAN)" procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
| CAN communication circuit Inspection (E-CAN) | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|

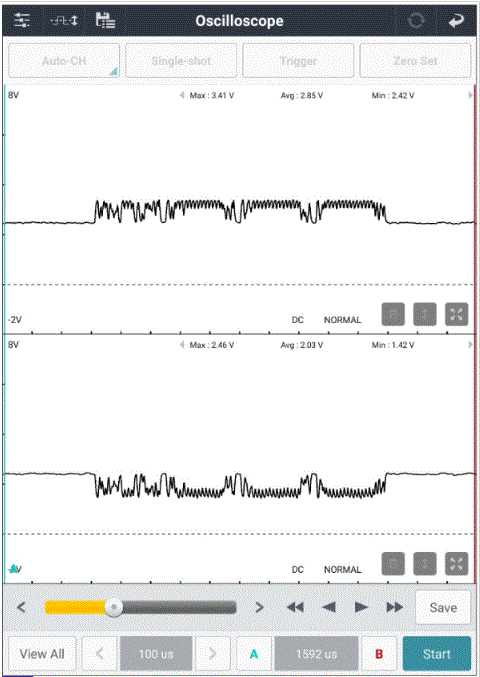

IEB connector | 4 (C-CAN high) | Chassis ground | - | Fig.2 |
| IEB connector | 5 (C-CAN low) | Chassis ground | - | ||
|
IEB connector | 4 (C-CAN high) | ICU connector | 20 (C-CAN high) |
Approx. below 1Ω |
| IEB connector | 5 (C-CAN low) | ICU connector | 19 (C-CAN low) |
Approx. below 1Ω | |
|
ICU (component inside)) | 20 (C-CAN high) | ICU (component inside) | 19 (C-CAN low) | Approx. 120Ω |
| SRSCM (component side) | 27 (C-CAN high) | SRSCM (component side) | 26 (C-CAN low) | Approx. 120Ω | |
Good
- Go to "CAN Communication circuit Inspection (C-CAN)" procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
| CAN communication circuit Inspection (C-CAN) | |||||
|---|---|---|---|---|---|
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
| Connector | Terminal | Connector | Terminal | ||
|
IEB module connector | 4 (C-CAN high) | Chassis ground | - | Fig.2 |
| IEB module connector | 5 (C-CAN low) | Chassis ground | - | ||
|
ICU connector | 20 (C-CAN high) | IEB module connector | 4 (C-CAN high) | Approx. below 1Ω |
| ICU connector | 19 (C-CAN low) | IEB module connector | 5 (C-CAN low) | Approx. below 1Ω | |
|
IEB module connector | 4 (C-CAN high) | IEB module connector | 5 (C-CAN low) | Approx. 60Ω |
| SRSCM (component side) | 27 (C-CAN high) | SRSCM (component side) | 26 (C-CAN low) | Approx. 120Ω | |
| ICU (component side) | 20 (C-CAN high) | ICU (component side) | 19 (C-CAN low) | Approx. 120Ω | |
Good
- Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
- Repair or replace as necessary and Go to "Verification Of Repair " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
- If problem still occurs, replace RR_C_RDR that causing the fault and then Go to "Verification Of Repair " procedure.
