Circuit Inspection
| Inspection Condition | (+) Probe | (-) Probe | Specification | ||
|---|---|---|---|---|---|
| Connector | Terminal | Connector | Terminal | ||
|

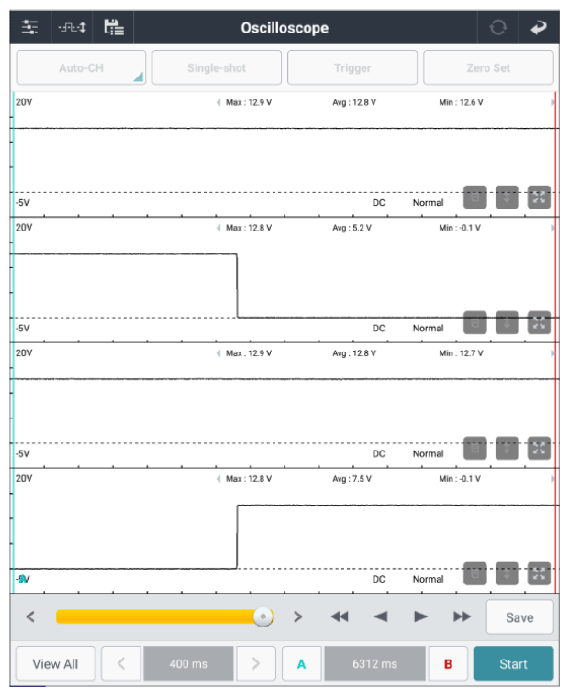

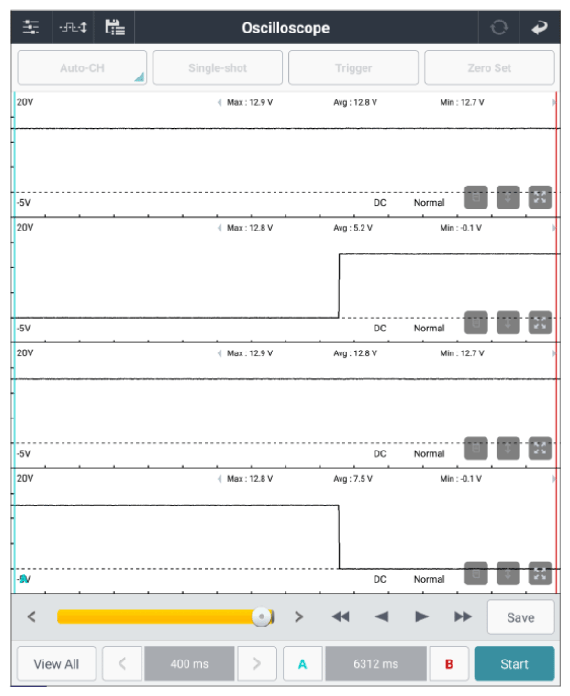

Brake light switch connector | 1 (ON/START Input) | Brake light switch connector | 2 (stop signal) | Fig.1 to 2 |
| Brake light switch connector | 4 (Memory power) | Brake light switch connector | 5 (stop lamp signal) | ||
|
Brake light switch connector | 5 (stop lamp signal) | PCM connector | 30 (stop lamp signal) | Approx. below 1Ω |
| Brake light switch connector | 2 (stop signal) | PCM connector | 31 (stop signal) | Approx. below 1Ω | |
| Brake light switch connector | 5 (stop lamp signal) | IEB module connector | 36 (stop lamp signal) | Approx. below 1Ω | |
Good
- Go to "COMPONENT INSPECTION " procedure.
No Good
- Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
