Circuit Inspection

G14969414

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

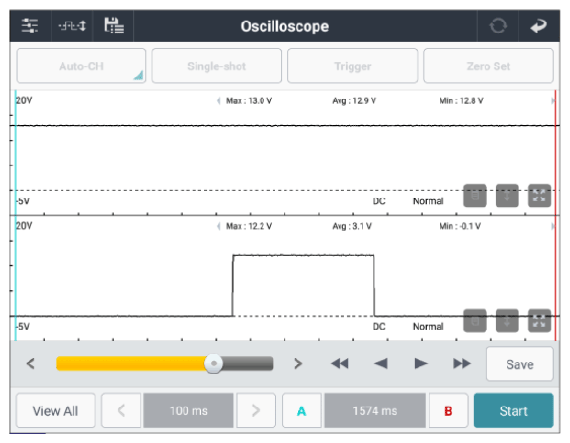

Ignition "ON" or EV "ON".	DBC OFF switch connector	1 (ON/START Input)	Chassis ground	-	Fig.1
Ignition "ON" or EV "ON".	DBC OFF switch connector	24 (signal)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	DBC OFF switch connector	24 (signal)	IEB module connector	32 (signal)	Approx. below 1Ω
	DBC OFF switch connector	24 (signal)	Chassis ground	-	∞ (infinity)Ω

G14969415

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
