Circuit Inspection

G14969390

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON".	EPB switch connector	17 (switch1)	EPB switch connector	18 (switch2)	Fig.1 to 3
Ignition "ON".	EPB switch connector	19 (switch3)	EPB switch connector	20 (switch4)	Fig.1 to 3
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	EPB switch connector	17 (switch1)	IEB module connector	20 (switch1)	Approx. below 1Ω
	EPB switch connector	18 (switch2)	IEB module connector	37 (switch2)	Approx. below 1Ω
	EPB switch connector	19 (switch3)	IEB module connector	45 (switch3)	Approx. below 1Ω
	EPB switch connector	20 (switch4)	IEB module connector	35 (switch4)	Approx. below 1Ω
	EPB switch connector	17 (switch1)	Chassis ground	-	∞ (infinity)Ω
	EPB switch connector	18 (switch2)	Chassis ground	-	∞ (infinity)Ω
	EPB switch connector	19 (switch3)	Chassis ground	-	∞ (infinity)Ω
	EPB switch connector	20 (switch4)	Chassis ground	-	∞ (infinity)Ω

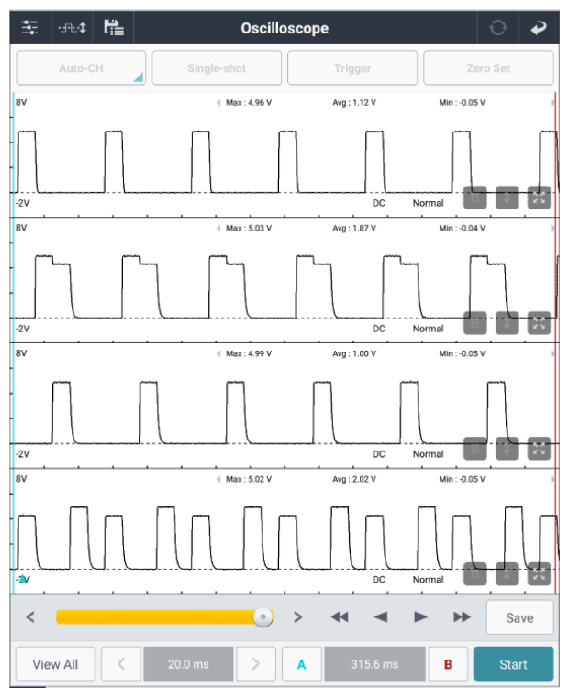

G14969391

Courtesy of KIA MOTORS AMERICA, INC.

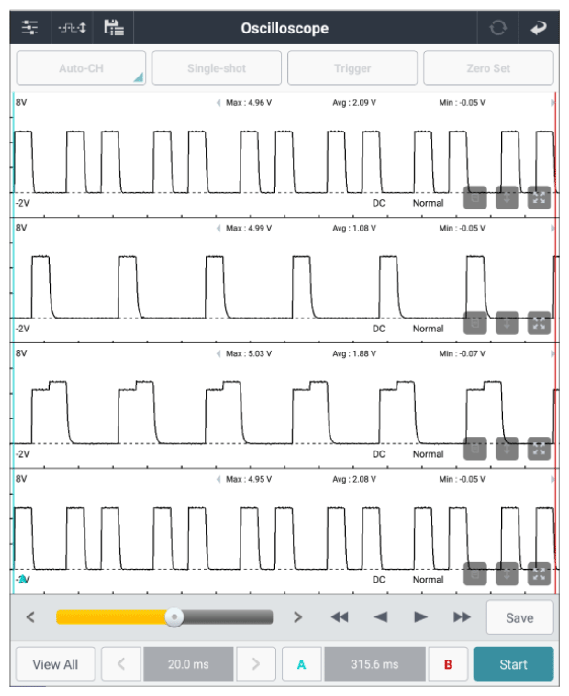

G14969392

Courtesy of KIA MOTORS AMERICA, INC.

G14969393

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
