Circuit Inspection

G14969356

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Ignition "ON" or EV "ON".	AVH switch connector	1 (ON/START Input)	Chassis ground	-	B+
Ignition "ON" or EV "ON".	AVH switch connector	4 (signal)	Chassis ground	-	B+
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	AVH switch connector	4 (signal)	IEB module connector	24 (signal)	Approx. below 1Ω
	AVH switch connector	4 (signal)	Chassis ground	-	∞ (infinity)Ω

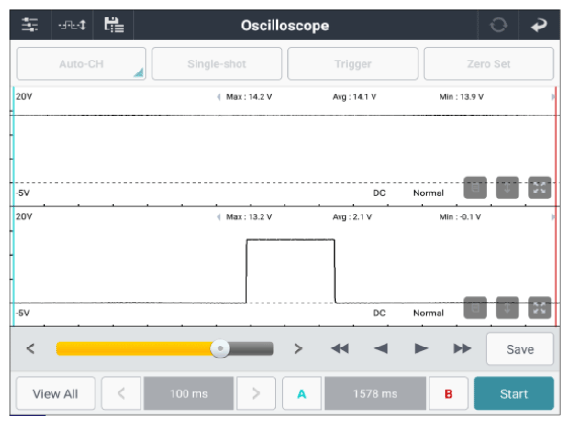

G14969357

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair as necessary and then Go to "Verification Of Repair " procedure.
