Component Inspection

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Actuation Test" and monitor parameter in "Current Data" with KDS.

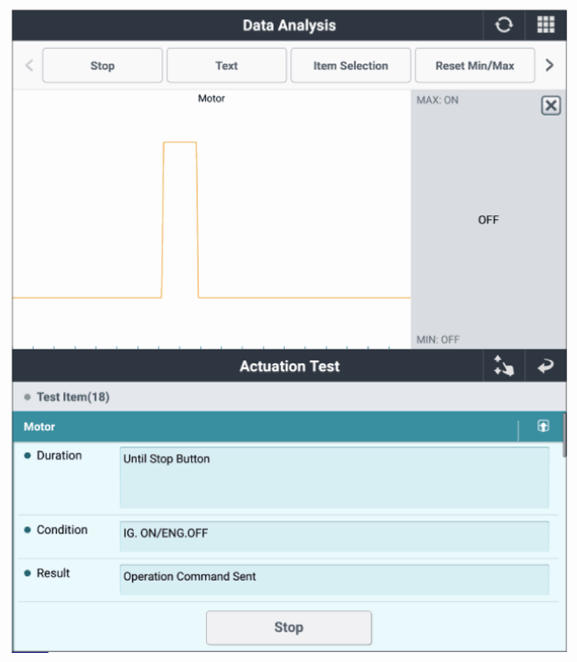

 Fig.1
G14942800Courtesy of KIA MOTORS AMERICA, INC.
