Circuit Inspection

G14942741Courtesy of KIA MOTORS AMERICA, INC.
G14942742Courtesy of KIA MOTORS AMERICA, INC.
Module Circuit Inspection
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
ADAS unit connector 1 (Memory power) Chassis ground - B+
ADAS unit connector 3, 12 (ground) Chassis ground - Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
  3. Ignition "ON".
ADAS unit connector 19 (ACC/ON Input) Chassis ground - B+
ADAS unit connector 14 (ON/START Input) Chassis ground - B+
ADAS unit connector 16 (ON Input) Chassis ground - B+

Good

No Good

CAN communication circuit Inspection (E-CAN)
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "ON".
ADAS unit connector 6 (E-CAN high) Chassis ground - Fig.1
ADAS unit connector 20 (E-CAN low) Chassis ground -
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
ADAS unit connector 6 (E-CAN high) ICU connector 31 (E-CAN high) Approx. below 1Ω
ADAS unit connector 20 (E-CAN low) ICU connector 32 (E-CAN low) Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
ADAS unit connector 6 (E-CAN high) ADAS unit connector 20 (E-CAN low) Approx. 60Ω
A/C control module (component side) 35 (E-CAN high) A/C control module (component side) 34 (E-CAN low) Approx. 120Ω
ICU (component side) 31 (E-CAN high) ICU (component side) 32 (E-CAN low) Approx. 120Ω

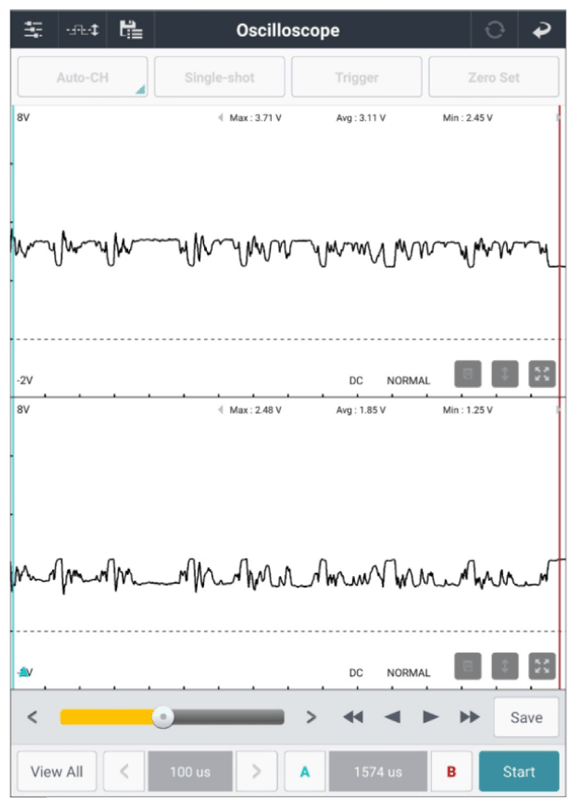

G14942743Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good

CAN communication circuit Inspection (C-CAN)
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. Ignition "ON".
IEB module connector 4 (C-CAN high) Chassis ground - Fig.2
IEB module connector 5 (C-CAN low) Chassis ground -
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
ICU connector 20 (C-CAN high) IEB module connector 4 (C-CAN high) Approx. below 1Ω
ICU connector 19 (C-CAN low) IEB module connector 5 (C-CAN low) Approx. below 1Ω
  1. Ignition "OFF".
  2. Disconnect the battery (-) terminal.
  3. Disconnect the electrical connector(s) from the concerned component.
IEB module connector 4 (C-CAN high) IEB module connector 5 (C-CAN low) Approx. 60Ω
SRSCM (component side) 27 (C-CAN high) SRSCM (component side) 26 (C-CAN low) Approx. 120Ω
ICU (component side) 20 (C-CAN high) ICU (component side) 19 (C-CAN low) Approx. 120Ω

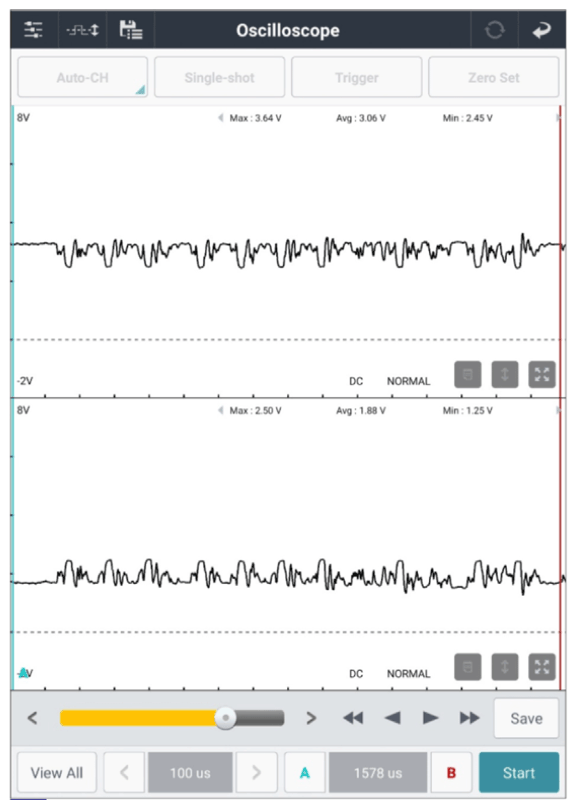

G14942744Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
