Circuit Inspection

G14969409

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

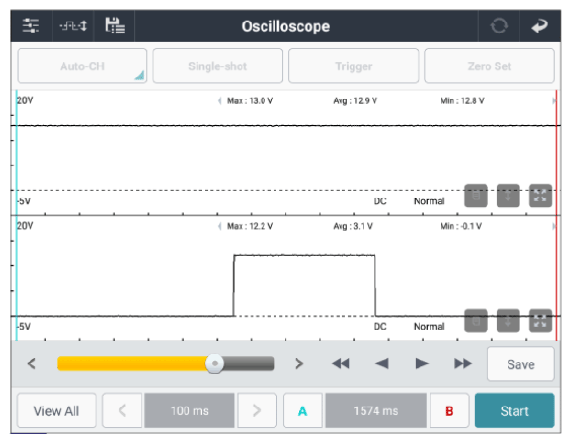

Ignition "ON" or EV "ON".	ESP OFF switch connector	1 (ON/START Input)	Chassis ground	-	Fig.1
Ignition "ON" or EV "ON".	ESP OFF switch connector	16 (signal)	Chassis ground	-	Fig.1
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	ESP OFF switch connector	16 (signal)	IEB module connector	16 (signal)	Approx. below 1Ω
	ESP OFF switch connector	16 (signal)	Chassis ground	-	∞ (infinity)Ω

G14969410

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "COMPONENT INSPECTION " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
