Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".

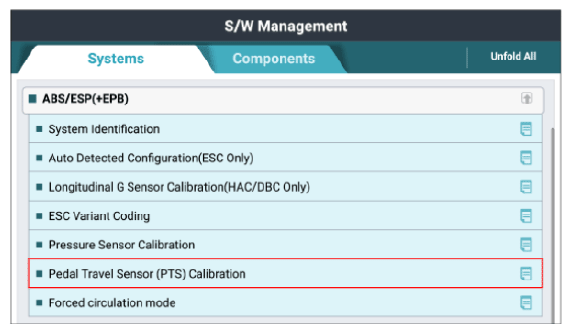

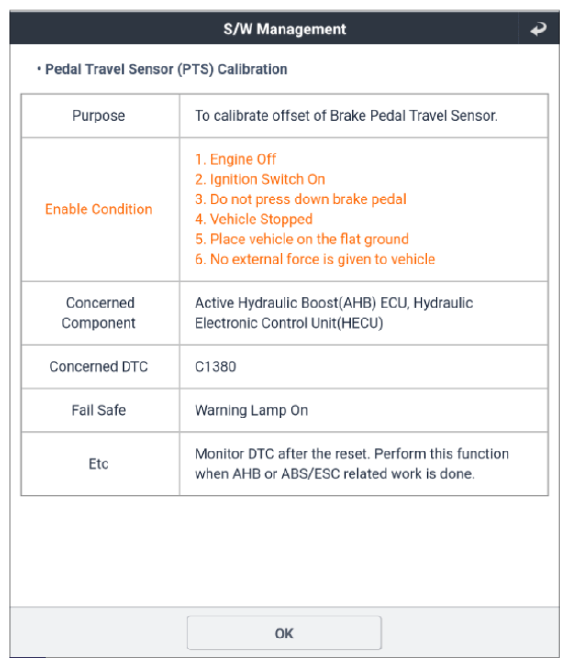

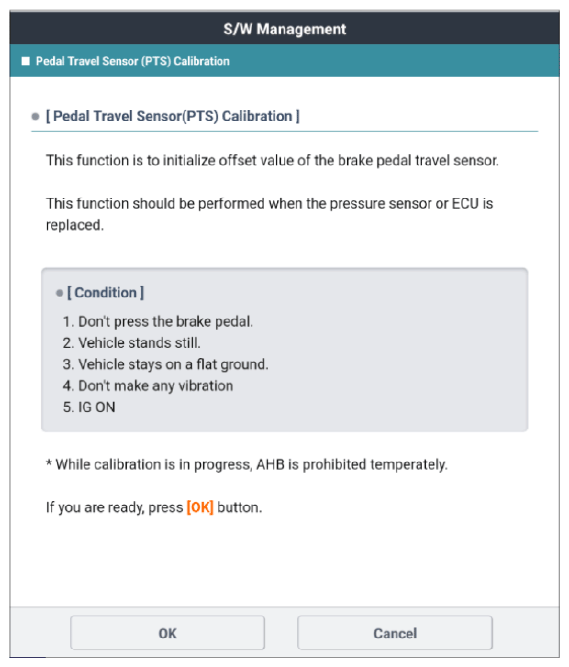

  2. Perform "Pedal Travel Sensor (PTS) Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4
G14969363Courtesy of KIA MOTORS AMERICA, INC.
G14969364Courtesy of KIA MOTORS AMERICA, INC.
G14969365Courtesy of KIA MOTORS AMERICA, INC.
G14969366Courtesy of KIA MOTORS AMERICA, INC.
