Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Pressure Sensor Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

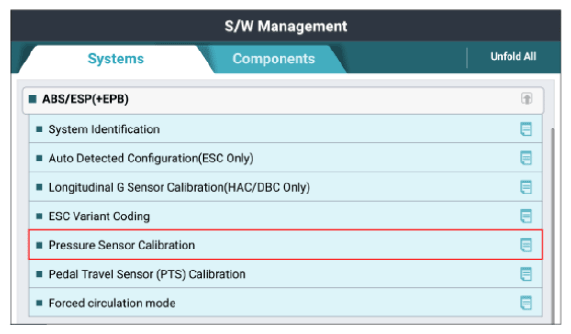

G14969345Courtesy of KIA MOTORS AMERICA, INC.

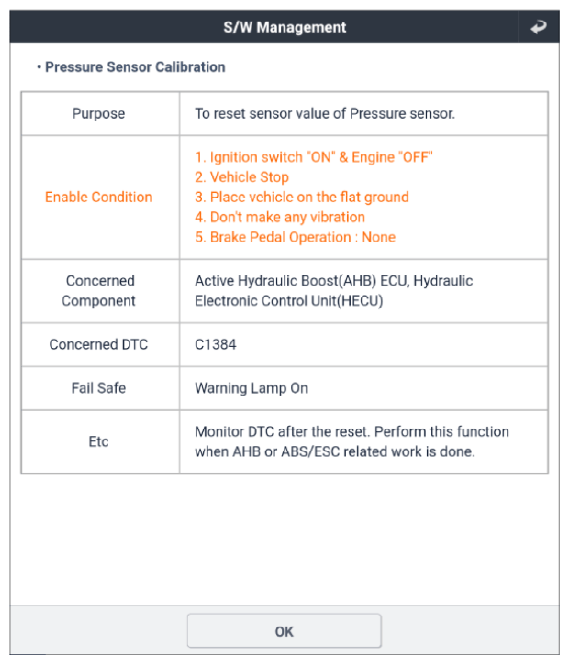

G14969346Courtesy of KIA MOTORS AMERICA, INC.
G14969347Courtesy of KIA MOTORS AMERICA, INC.
G14969348Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Forced circulation mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

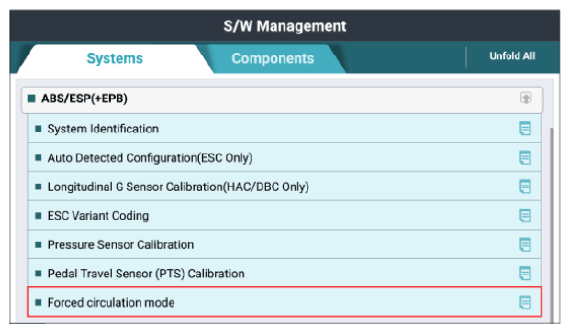

G14969349Courtesy of KIA MOTORS AMERICA, INC.

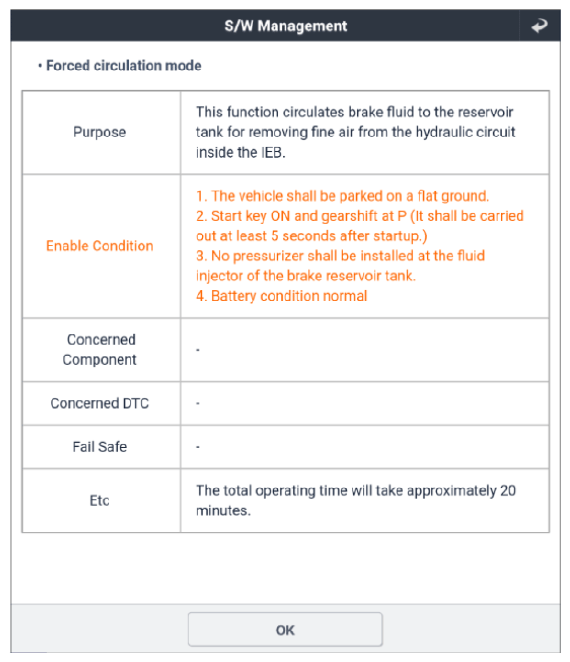

G14969350Courtesy of KIA MOTORS AMERICA, INC.

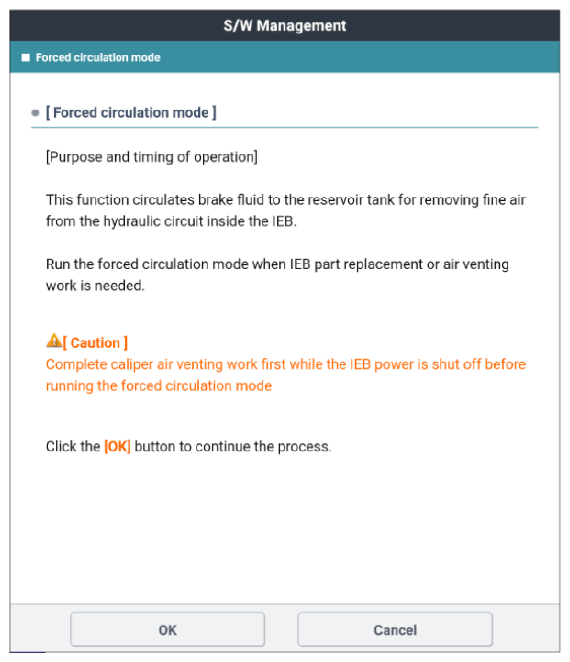

G14969351Courtesy of KIA MOTORS AMERICA, INC.

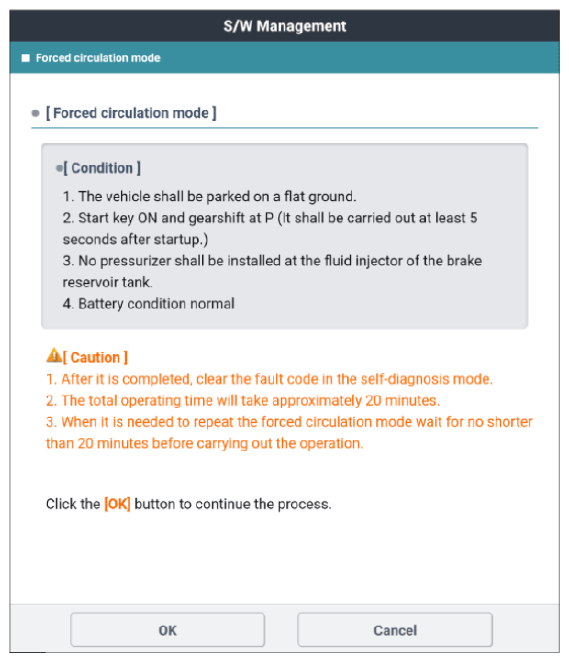

G14969352Courtesy of KIA MOTORS AMERICA, INC.
G14969353Courtesy of KIA MOTORS AMERICA, INC.
