Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Pressure Sensor Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

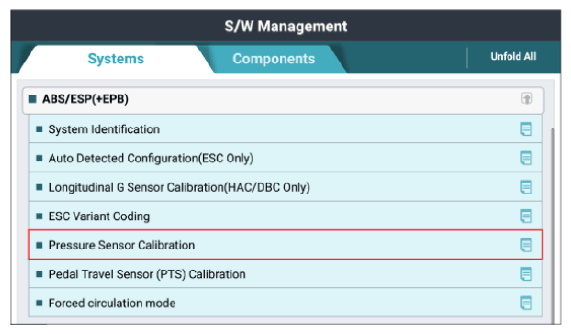

G14969333Courtesy of KIA MOTORS AMERICA, INC.

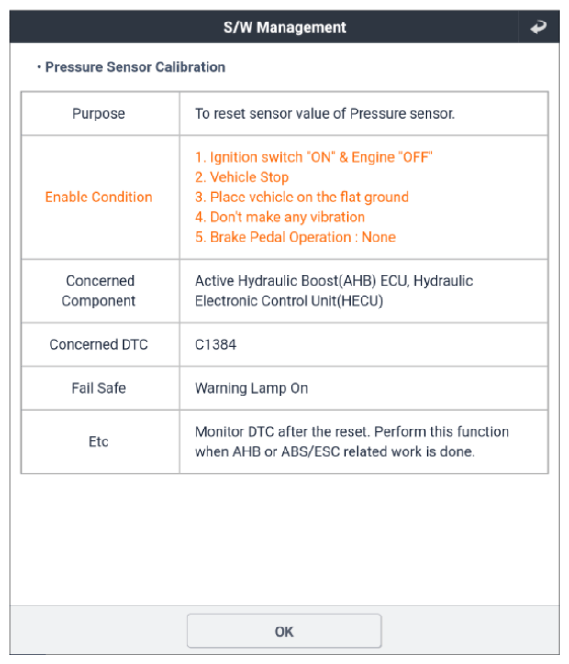

G14969334Courtesy of KIA MOTORS AMERICA, INC.

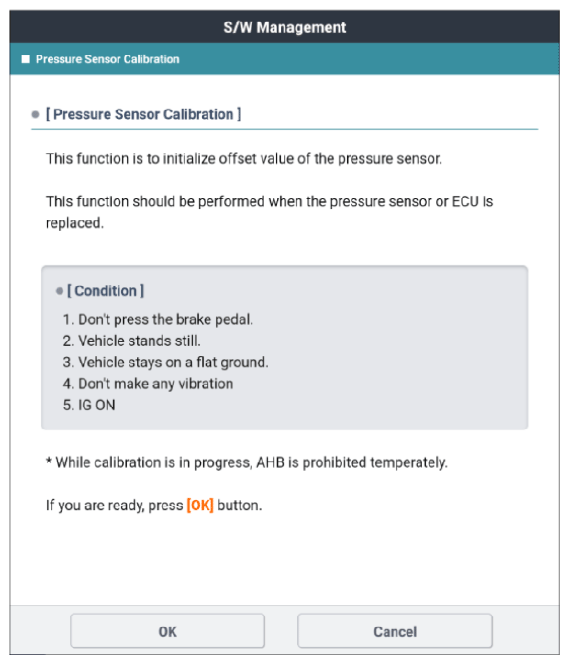

G14969335Courtesy of KIA MOTORS AMERICA, INC.
G14969336Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Forced circulation mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

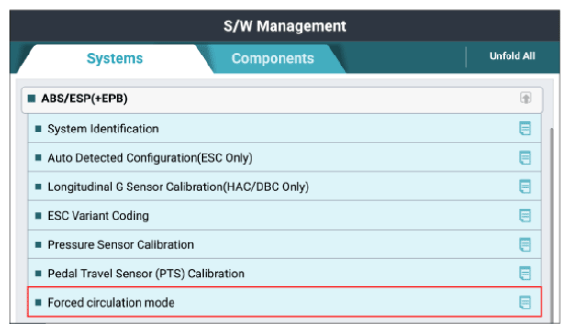

G14969337Courtesy of KIA MOTORS AMERICA, INC.

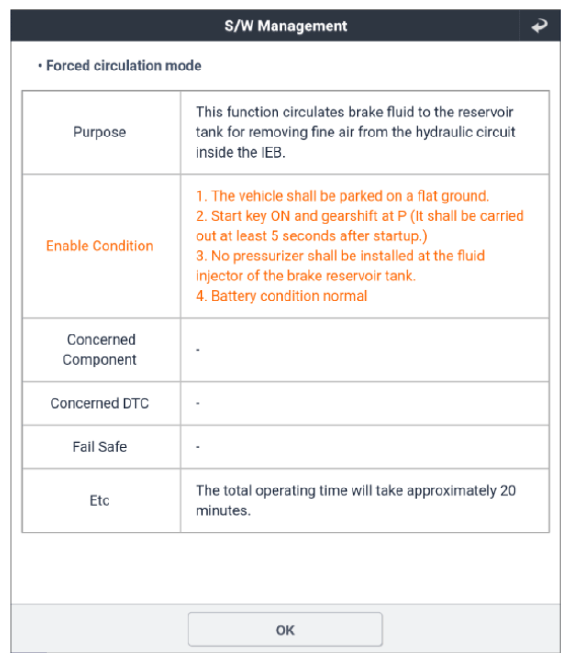

G14969338Courtesy of KIA MOTORS AMERICA, INC.

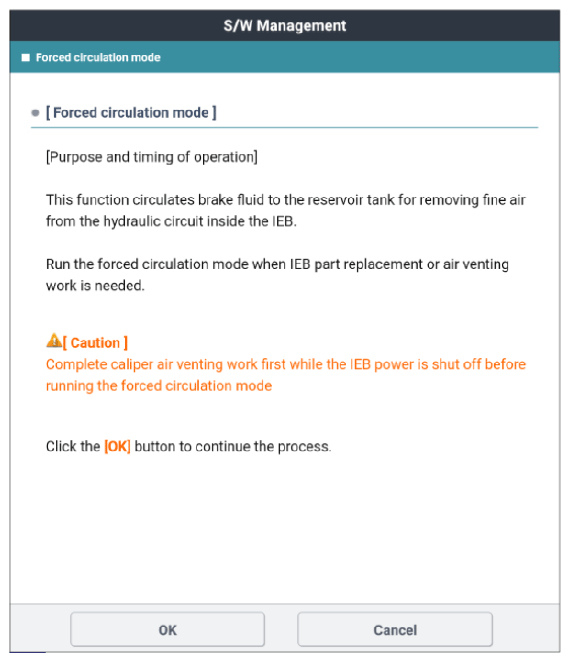

G14969339Courtesy of KIA MOTORS AMERICA, INC.

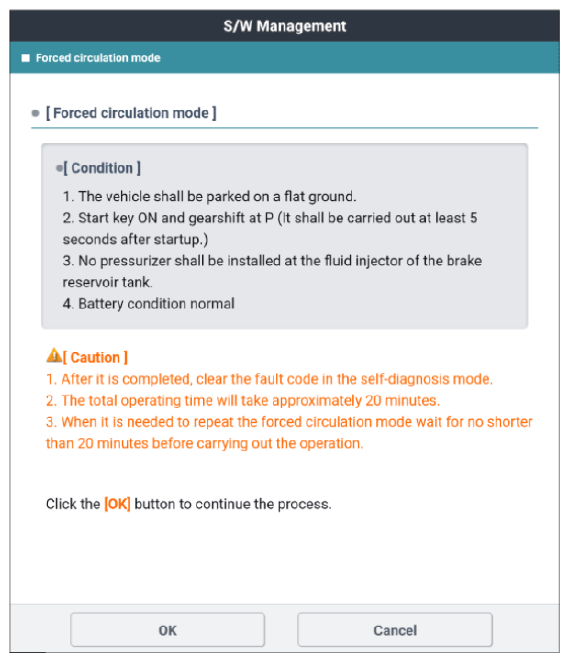

G14969340Courtesy of KIA MOTORS AMERICA, INC.
G14969341Courtesy of KIA MOTORS AMERICA, INC.
