Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Pressure Sensor Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

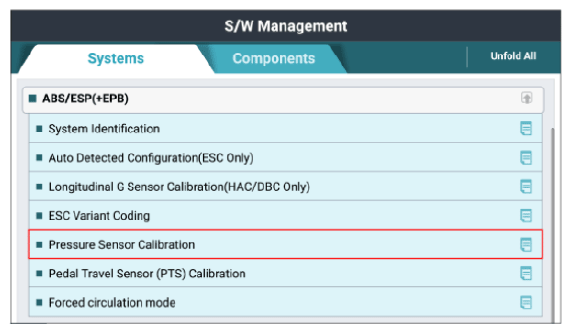

G14969321Courtesy of KIA MOTORS AMERICA, INC.

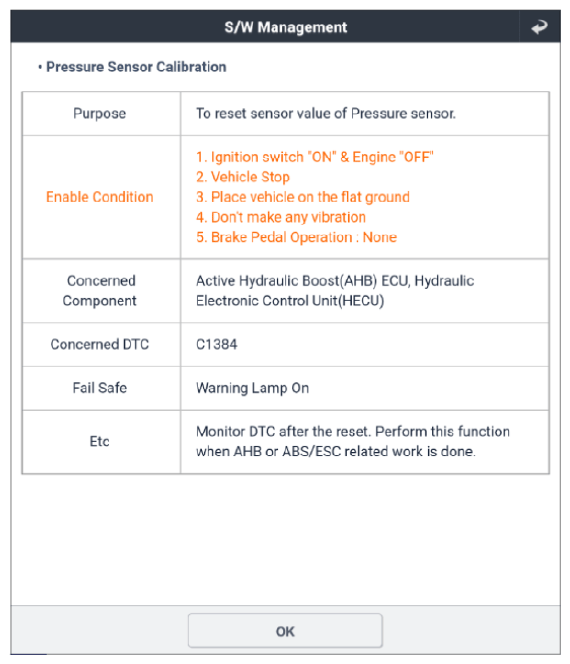

G14969322Courtesy of KIA MOTORS AMERICA, INC.

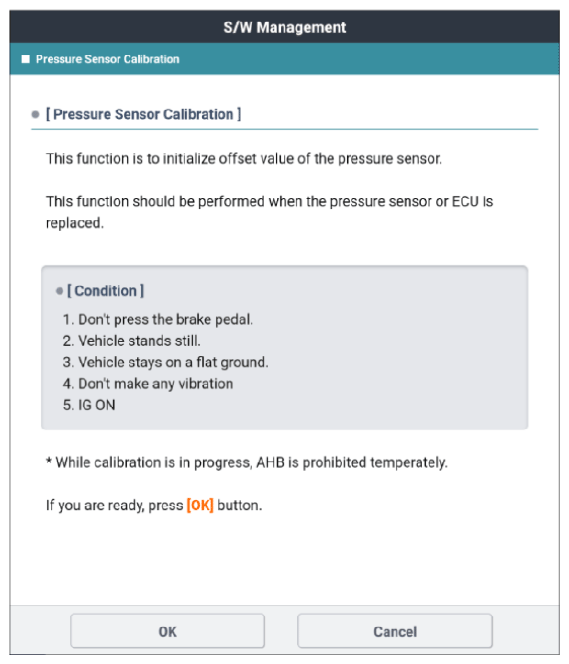

G14969323Courtesy of KIA MOTORS AMERICA, INC.
G14969324Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Forced circulation mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

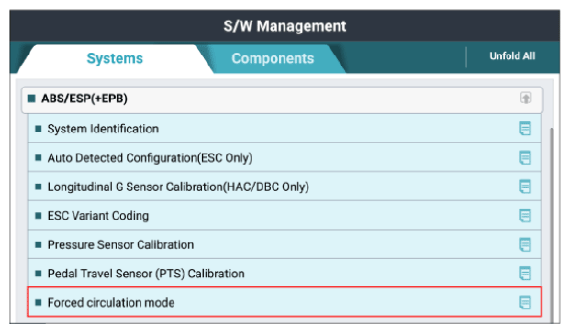

G14969325Courtesy of KIA MOTORS AMERICA, INC.

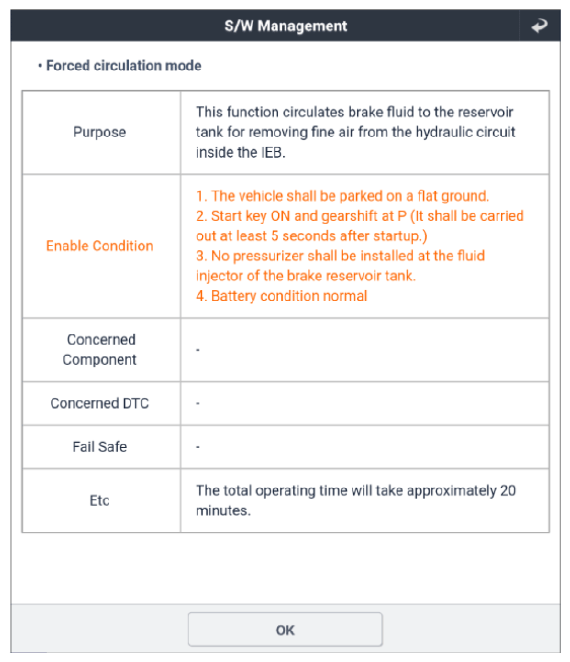

G14969326Courtesy of KIA MOTORS AMERICA, INC.

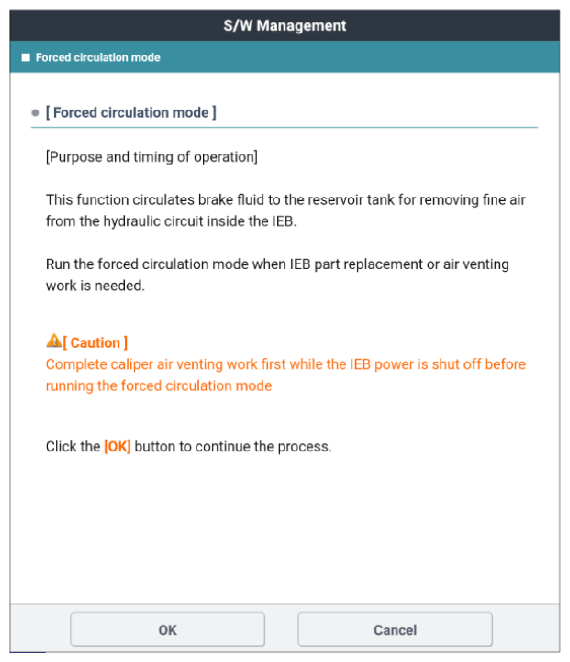

G14969327Courtesy of KIA MOTORS AMERICA, INC.

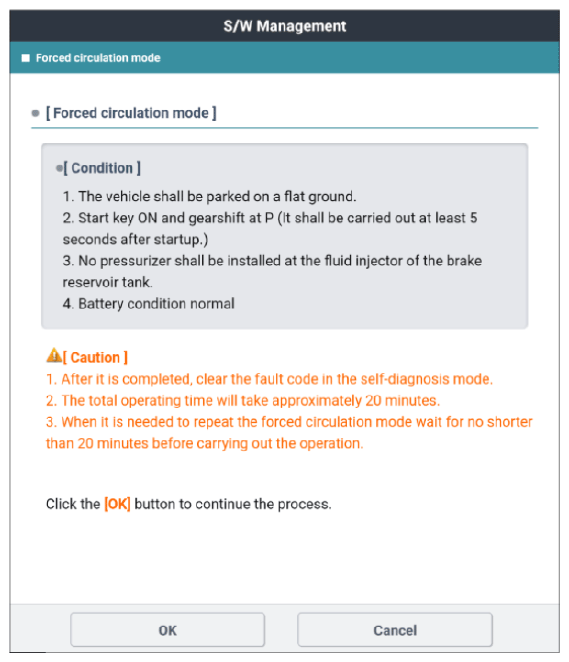

G14969328Courtesy of KIA MOTORS AMERICA, INC.
G14969329Courtesy of KIA MOTORS AMERICA, INC.
