Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Pressure Sensor Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

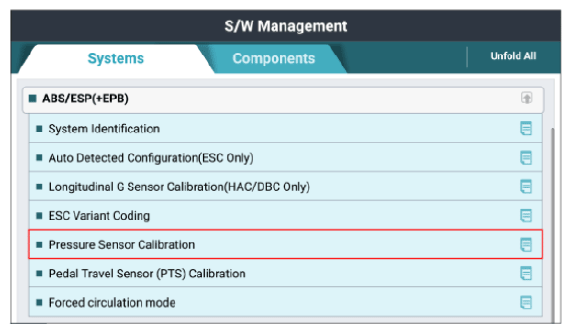

G14969309Courtesy of KIA MOTORS AMERICA, INC.

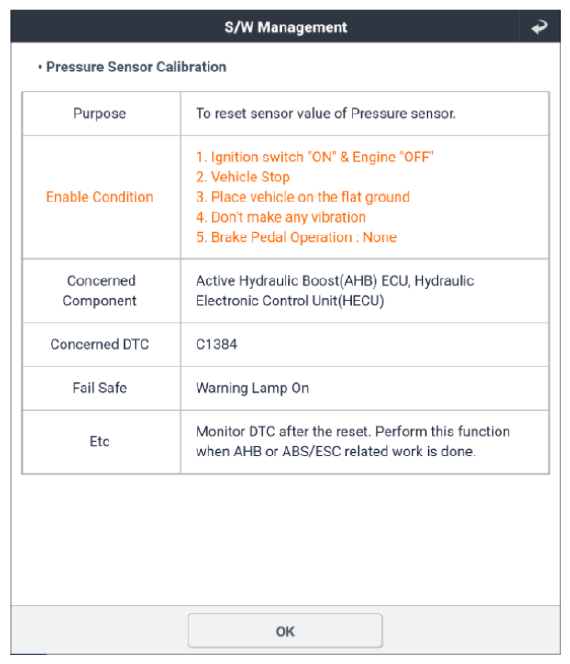

G14969310Courtesy of KIA MOTORS AMERICA, INC.

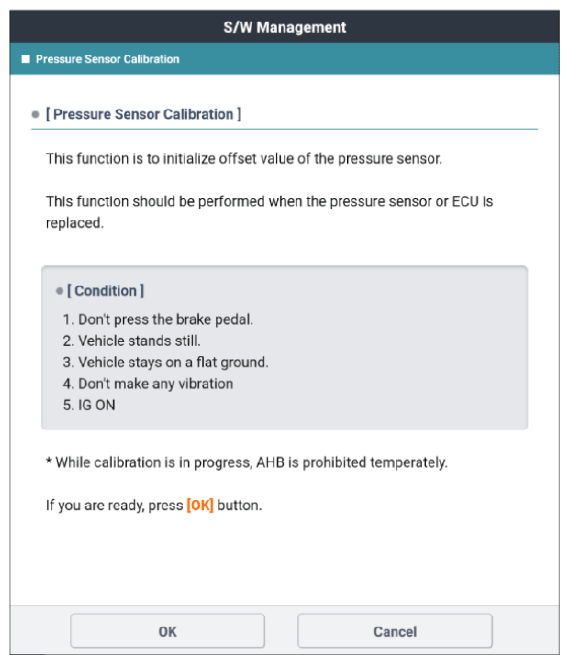

G14969311Courtesy of KIA MOTORS AMERICA, INC.
G14969312Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Forced circulation mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

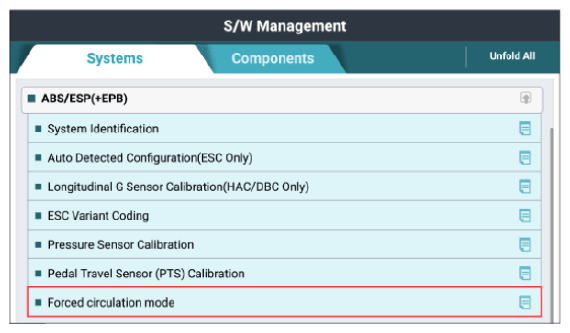

G14969313Courtesy of KIA MOTORS AMERICA, INC.

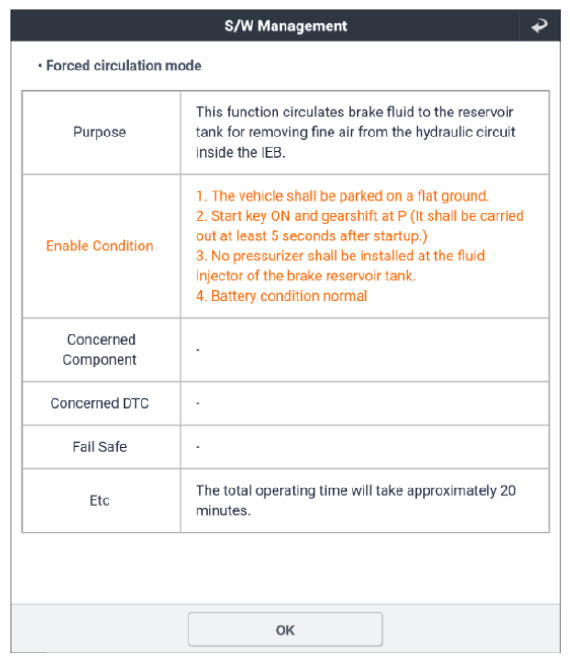

G14969314Courtesy of KIA MOTORS AMERICA, INC.

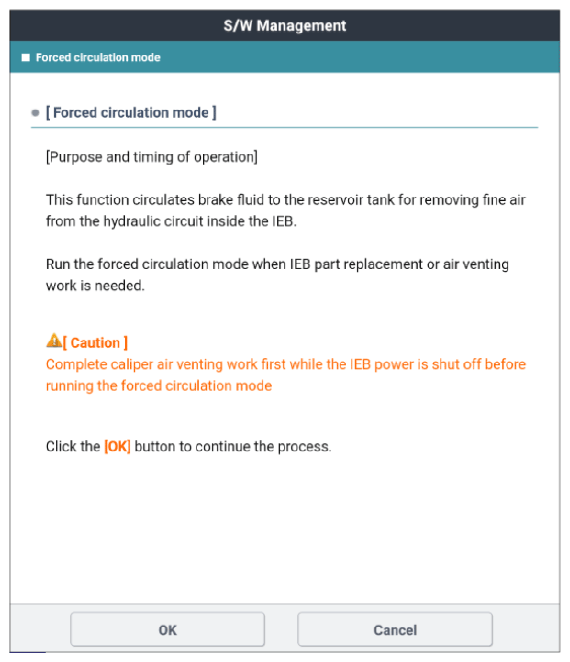

G14969315Courtesy of KIA MOTORS AMERICA, INC.

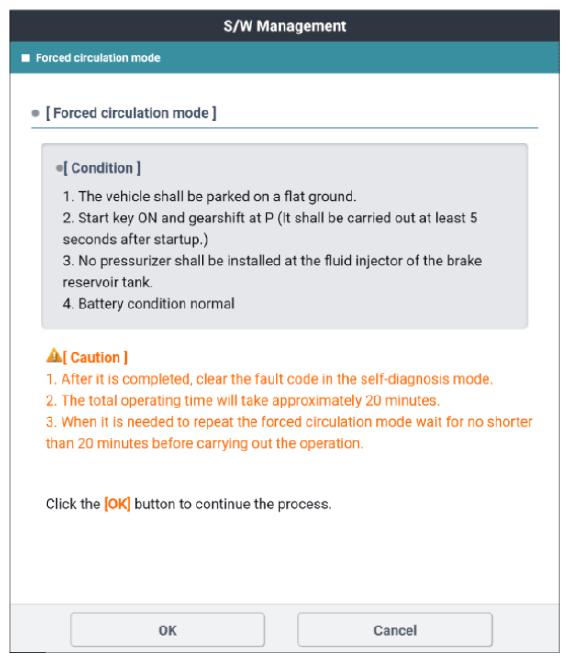

G14969316Courtesy of KIA MOTORS AMERICA, INC.
G14969317Courtesy of KIA MOTORS AMERICA, INC.
