Component Inspection: Notes

Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Pressure Sensor Calibration" in "Vehicle S/W management" with KDS.
 Fig.1 to 4

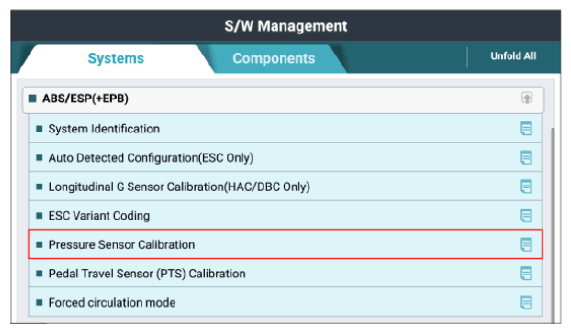

G14969228Courtesy of KIA MOTORS AMERICA, INC.

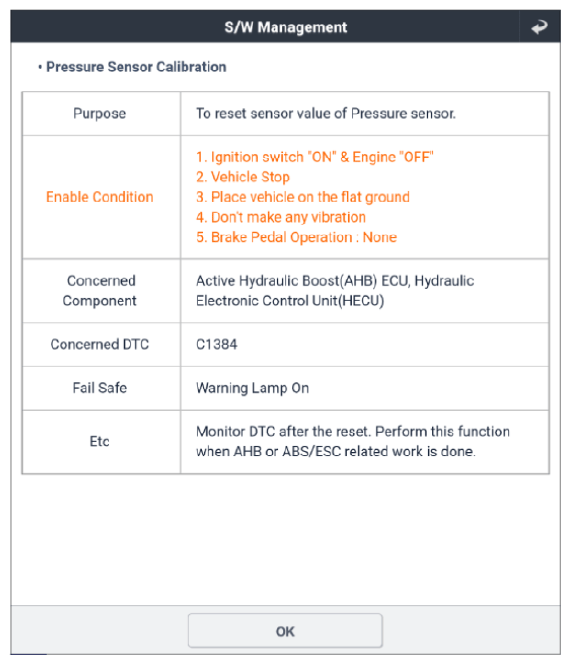

G14969229Courtesy of KIA MOTORS AMERICA, INC.

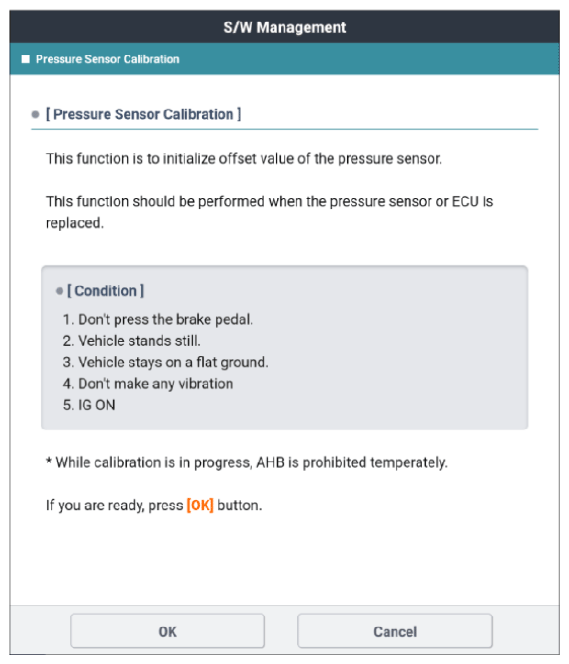

G14969230Courtesy of KIA MOTORS AMERICA, INC.
G14969231Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS to "Data Link Connector (DLC)".
  2. Perform "Forced circulation mode" in "Vehicle S/W management" with KDS.
 Fig.1 to 5

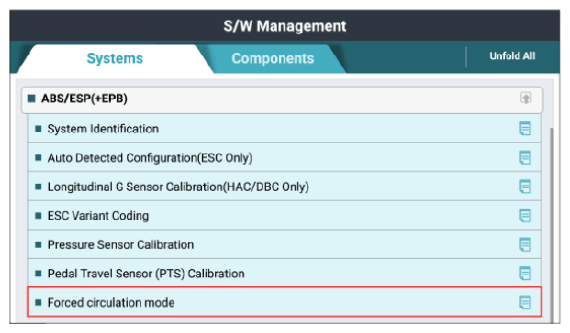

G14969232Courtesy of KIA MOTORS AMERICA, INC.

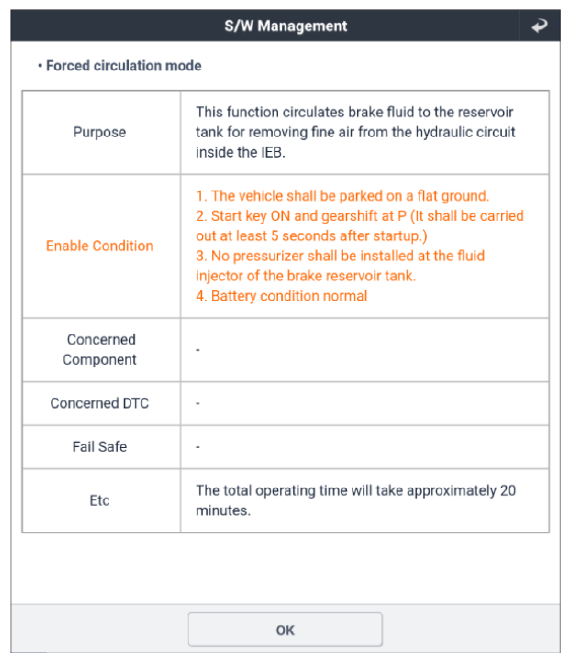

G14969233Courtesy of KIA MOTORS AMERICA, INC.

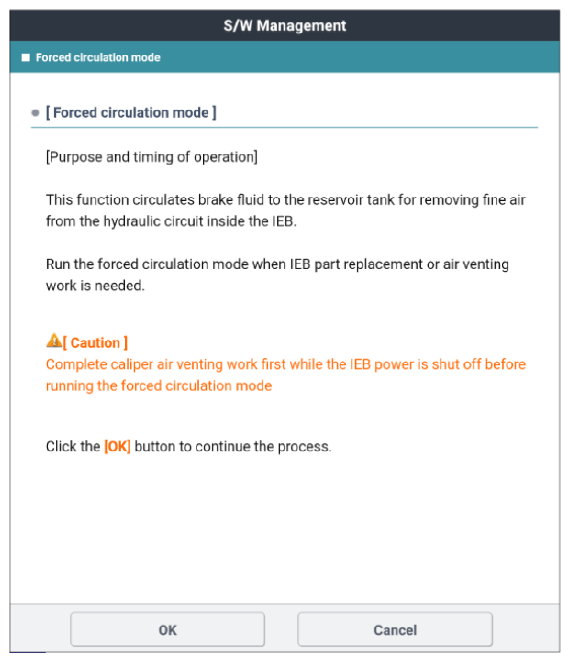

G14969234Courtesy of KIA MOTORS AMERICA, INC.

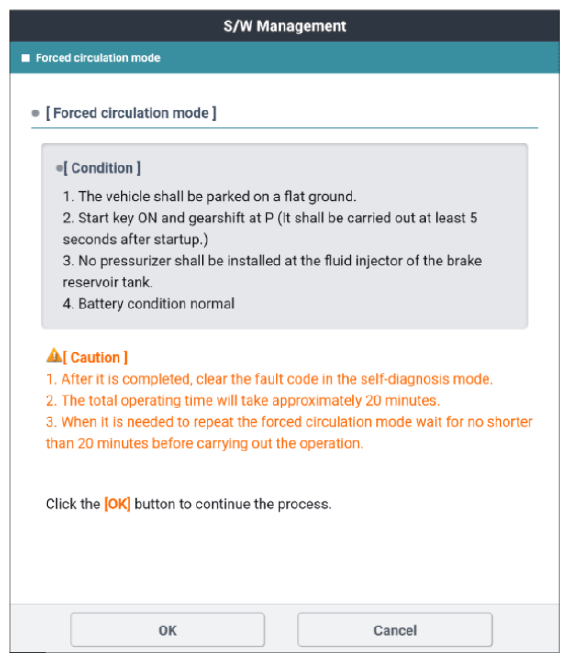

G14969235Courtesy of KIA MOTORS AMERICA, INC.
G14969236Courtesy of KIA MOTORS AMERICA, INC.
