Circuit Inspection

G14969186Courtesy of KIA MOTORS AMERICA, INC.
G00671887Courtesy of KIA MOTORS AMERICA, INC.
Inspection Condition (+) Probe (-) Probe Specification
Connector Terminal Connector Terminal
  1. EV "ON".
 WSS rear-LH connector 2 (power) - 4WD 1 (power) - 2WD WSS rear-LH connector 1 (signal) - 4WD 2 (signal) -2WD Fig.1
  1. Disconnect the electrical connector(s) from the concerned component.
  2. Ignition "ON".
 WSS rear-LH connector 2 (power) - 4WD 1 (power) - 2WD Chassis ground - Approx. 10V
WSS rear-LH connector 1 (signal) - 4WD 2 (signal) -2WD Chassis ground - Approx. 3.9 to 8.8V
  1. Ignition "OFF".
  2. Disconnect the electrical connector(s) from the concerned component.
 WSS rear-LH connector 1 (signal) - 4WD 2 (signal) -2WD IEB module connector 42 (signal) Approx. below 1Ω
WSS rear-LH connector 2 (power) - 4WD 1 (power) - 2WD IEB module connector 33 (power) Approx. below 1Ω

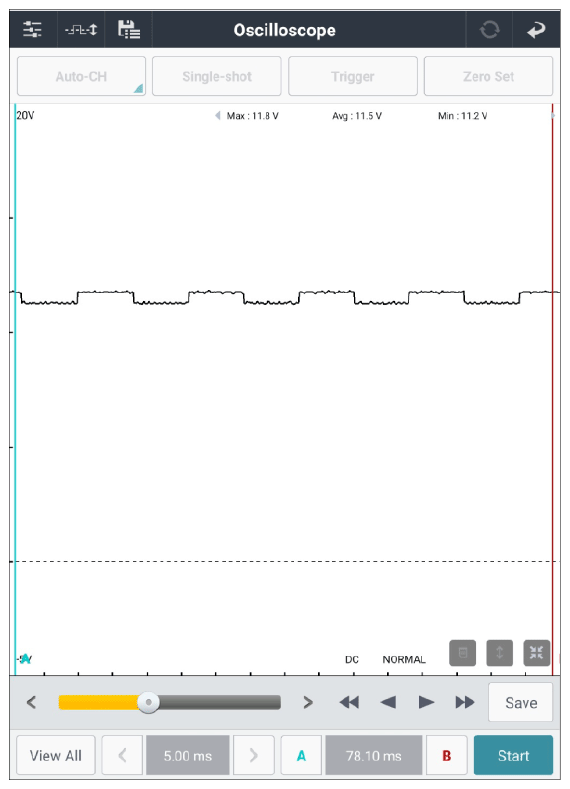

G14969187Courtesy of KIA MOTORS AMERICA, INC.
G00671888Courtesy of KIA MOTORS AMERICA, INC.

Good

No Good
