Circuit Inspection

G14969186

Courtesy of KIA MOTORS AMERICA, INC.

G00671887

Courtesy of KIA MOTORS AMERICA, INC.

Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification

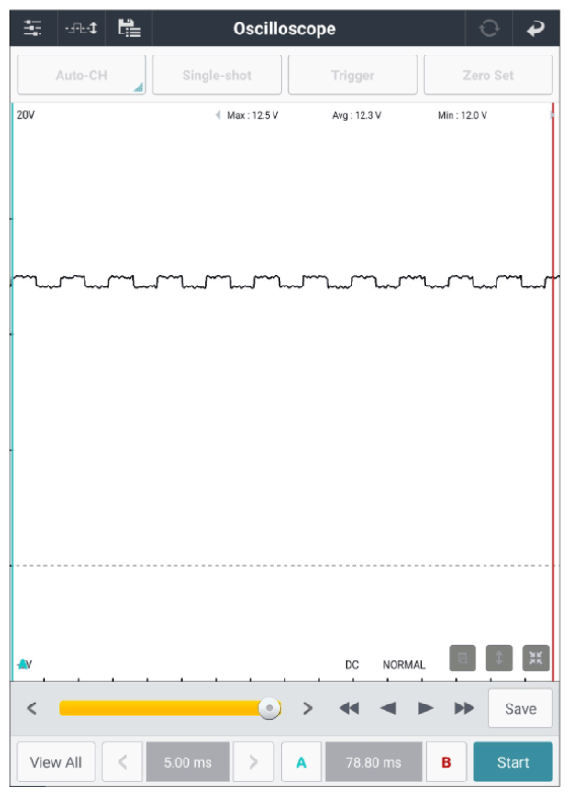

EV "ON".	WSS front-RH connector	1 (power)	WSS front-RH connector	2 (signal)	Fig.1
Ignition "ON".	WSS front-RH connector	1 (power)	Chassis ground	-	Approx. 10V
Ignition "ON".	WSS front-RH connector	2 (signal)	Chassis ground	-	Approx. 3.9 to 8.8V
Ignition "OFF". Disconnect the electrical connector(s) from the concerned component.	WSS front-RH connector	2 (signal)	IEB module connector	28 (signal)	Approx. below 1Ω
	WSS front-RH connector	1 (power)	IEB module connector	18 (power)	Approx. below 1Ω

G14969177

Courtesy of KIA MOTORS AMERICA, INC.

G00671888

Courtesy of KIA MOTORS AMERICA, INC.

Good

Go to "Component Inspection " procedure.

No Good

Repair open or short in circuit and then Go to "Verification Of Repair " procedure.
