Home >> Kia >> 2023 >> Sorento Plug-In Hybrid SX Prestige >> Repair and Diagnosis >> Brakes >> Anti-Lock Brakes >> Abs/Esp Diagnosis (PHEV) (1 Of 4) >> DTC C1202-02: Wheel Speed Sensor Front-LH Invalid/No Signal >> Component Location

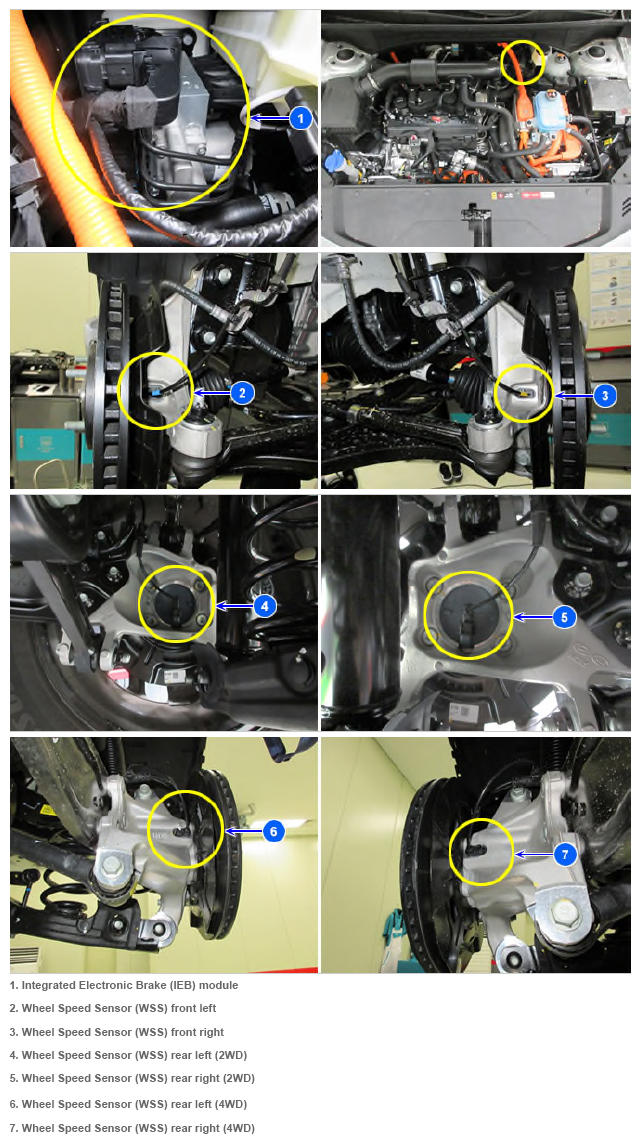

Component Location

G14969163Courtesy of KIA MOTORS AMERICA, INC.
