Repair Procedures: Removal
CAUTION:
Put on gloves to prevent hand injuries.
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
- Remove the front wheel guard.
(Refer to Body Side Molding - "FRONT WHEEL GUARD ")
- Remove the rear wheel guard.
(Refer to Body Side Molding - "REAR WHEEL GUARD ")

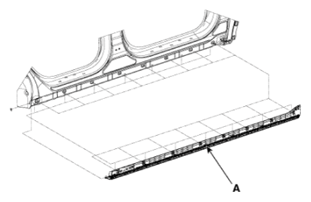

- Remove the side sill molding (A) by using a panel remover.
