Repair Procedures: Removal

WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the Roof Trim.

    (Refer to Roof Trim - "ROOF TRIM ASSEMBLY ")

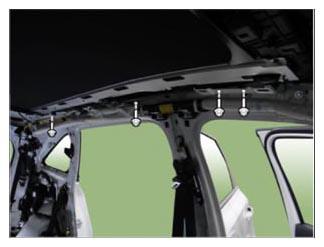

  2. Remove the roof rack mounting bolts.
    G14940024Courtesy of KIA MOTORS AMERICA, INC.

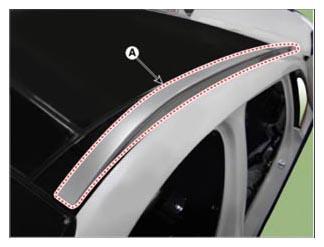

  3. Remove the roof rack assembly (A).
    G14940025Courtesy of KIA MOTORS AMERICA, INC.
