Repair Procedures: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")

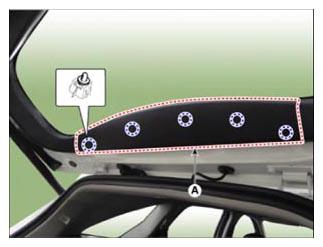

Remove the tailgate upper trim (A) by using a flat-head screwdriver or remover.

Courtesy of KIA MOTORS AMERICA, INC.

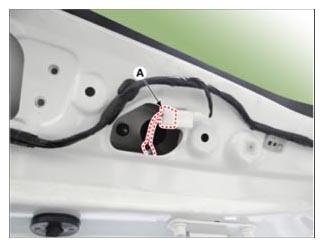

Disconnect the high mounted stop lamp connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

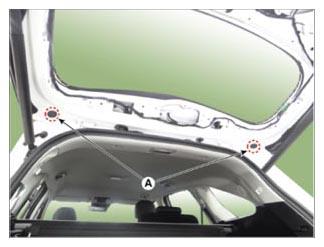

Remove the rear spoiler cap (A).

Courtesy of KIA MOTORS AMERICA, INC.

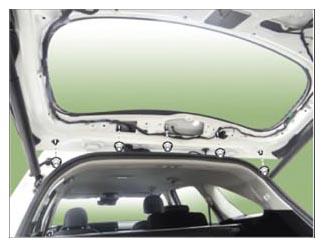

Remove the rear spoiler mounting nuts.
Tightening torque:

2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.2 - 3.6 lb.ft)

Courtesy of KIA MOTORS AMERICA, INC.

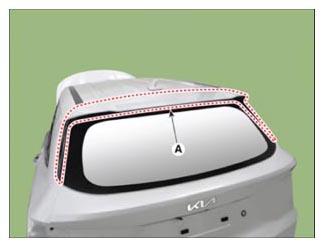

Remove the rear spoiler (A).

Courtesy of KIA MOTORS AMERICA, INC.
