Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the front bumper assembly.
(Refer to Body - "FRONT BUMPER ASSEMBLY ")
Disconnect the horn connector (B).
Remove the horn (A) by removing the bolt.
Tightening torque:

9.8 - 11.8 N.m (1.0 - 1.2 kgf-m, 7.2 - 8.7 lb.ft)

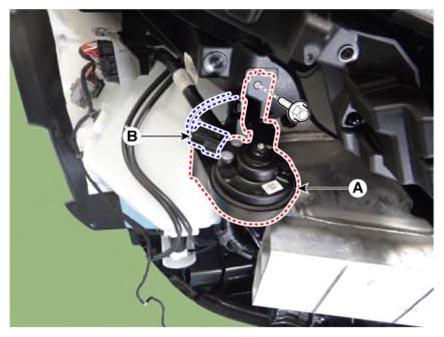

[Low pitch]

Courtesy of KIA MOTORS AMERICA, INC.

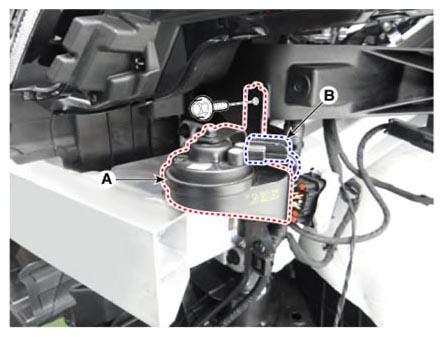

[High pitch]

Courtesy of KIA MOTORS AMERICA, INC.
