Repair Procedures: Removal

NOTE: When prying with a flat-head screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.

Disconnect the negative (-) battery terminal.
(Refer to Engine Electrical System - "AUXILIARY BATTERY ")
Remove the cluster fascia panel.
(Refer to Body - "CLUSTER FASCIA PANEL ")

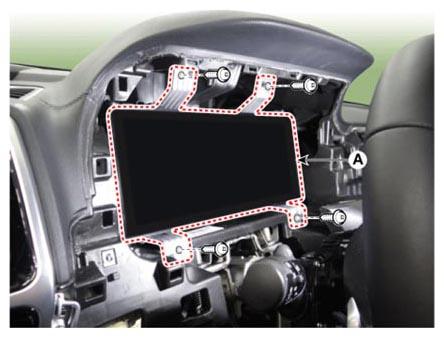

Remove the instrument cluster (A) by removing the mounting screws.

Courtesy of KIA MOTORS AMERICA, INC.

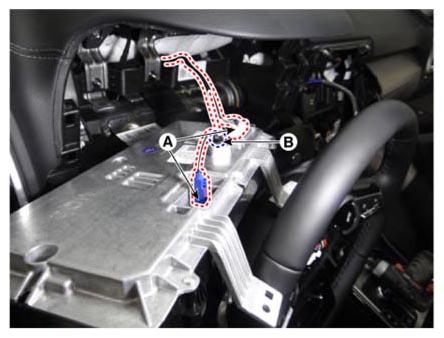

Disconnect the instrument cluster connectors (A) and the fixing clip.
