Repair Procedures: Removal

NOTE:
  • Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Remove the cluster assembly.

    (Refer to Indicators And Gauges - "INSTRUMENT CLUSTER ")

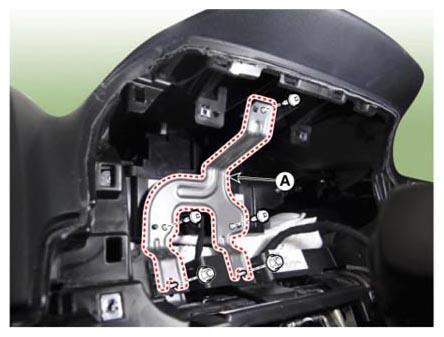

  2. Remove the crash pad support bracket (A) by removing the mounting screws and nuts.
    G14962987Courtesy of KIA MOTORS AMERICA, INC.

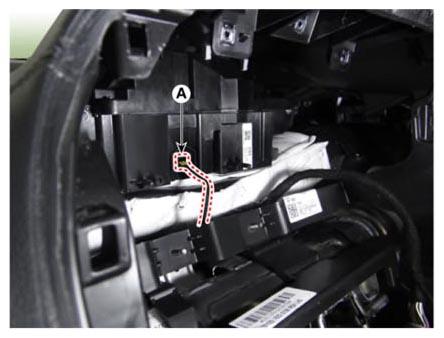

  3. Disconnect the head up display unit connector (A).
    G14962988Courtesy of KIA MOTORS AMERICA, INC.

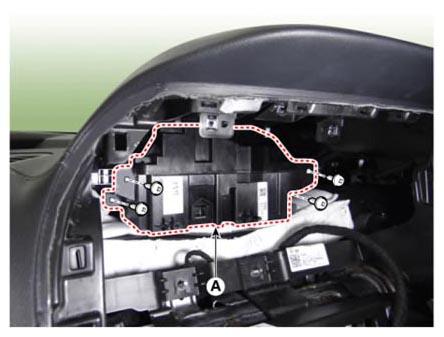

  4. Remove the head up display unit (A) by removing the mounting screws.
    G14962989Courtesy of KIA MOTORS AMERICA, INC.
