Repair Procedures: Removal

WARNING:
  • When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
  • When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
  • When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
  1. Remove the crash pad lower panel.

    (Refer to Crash Pad - "Crash Pad Lower Panel ")

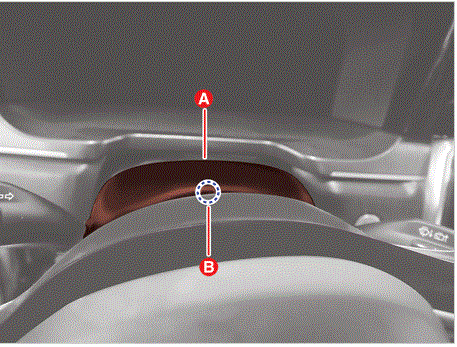

  2. Remove the crash pad center garnish (A) after using the service hole (B).
    G14940140Courtesy of KIA MOTORS AMERICA, INC.

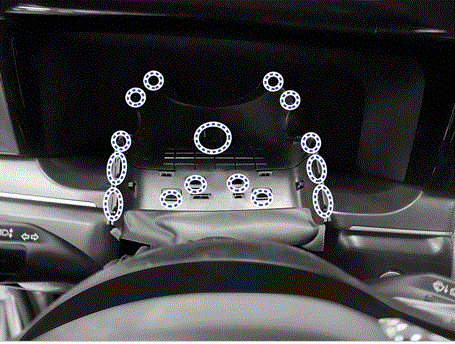

    G00671825Courtesy of KIA MOTORS AMERICA, INC.

    Information

    G00668365Courtesy of KIA MOTORS AMERICA, INC.

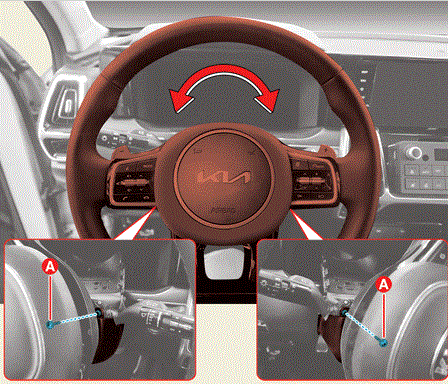

  3. Turn the steering wheel left and right to remove the screws (A).
    G00671826Courtesy of KIA MOTORS AMERICA, INC.

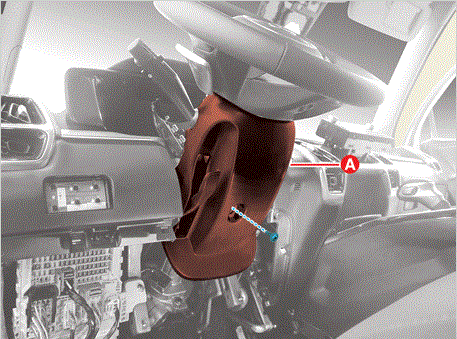

  4. Remove the steering column shroud panel (A) after removing the screw.
    G00671827Courtesy of KIA MOTORS AMERICA, INC.
