Repair Procedures: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.

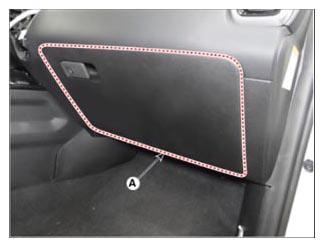

Open the glove box (A)

Courtesy of KIA MOTORS AMERICA, INC.

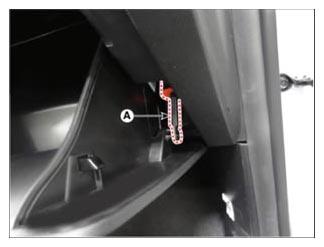

Separate the air damper (A) from the glove box.

Courtesy of KIA MOTORS AMERICA, INC.

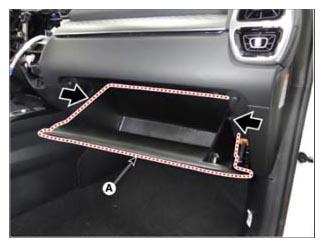

Remove the glove box (A) by pushing both sides inward.

Courtesy of KIA MOTORS AMERICA, INC.
