Crash Pad Passenger's Garnish

  1. Remove the crash pad side cover [RH]

    (Refer to Crash Pad - "Crash Pad Side Cover ")

  2. Remove the AVN and audio head unit.

    (Refer to ("A/V NAVIGATION ")

    (Refer to ("REMOVAL Audio")

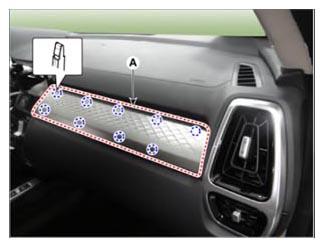

  3. Remove the crash pad mounting cover [RH] (A) using a flat-head screwdriver or remover.
    G14940144Courtesy of KIA MOTORS AMERICA, INC.

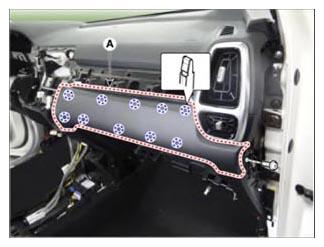

  4. Remove the crash pad passenger's (A) after removing the mounting screw.
    G14940145Courtesy of KIA MOTORS AMERICA, INC.

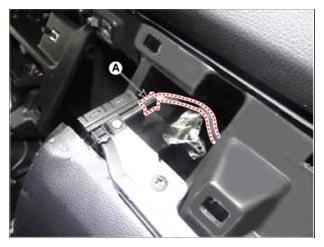

  5. Disconnect the crash pad garnish connector (A).
    G14940146Courtesy of KIA MOTORS AMERICA, INC.
