Repair Procedures: Removal
WARNING:
- When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
- When working on the high voltage system or related components, be sure to observe and be aware of the "Safety Precautions, Cautions and Warnings". If not, it may cause serious accidents due to electric shock or short circuit.
- When working on the high voltage system, make sure to check the Personal Protective Equipment (PPE) and high voltage shut-off procedure.
- Remove the floor console assembly.
(Refer to Floor Console - "FLOOR CONSOLE ASSEMBLY ")
- Remove the cowl side trim.
(Refer to Interior Trim - "COWL SIDE TRIM ")
- Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")
- Remove the crash pad lower panel.
(Refer to Crash Pad - "CRASH PAD LOWER PANEL ")
- Remove the crash pad passenger's garnish.
(Refer to Crash Pad - "CRASH PAD GARNISH ")
- Remove the heater & A/C control unit.
(Refer to Heating, Ventilation and Air Conditioning - "HEATER & A/C CONTROL UNIT (FATC) ")
- Remove the crash pad under cover.
(Refer to Crash Pad - "CRASH PAD UNDER COVER ")

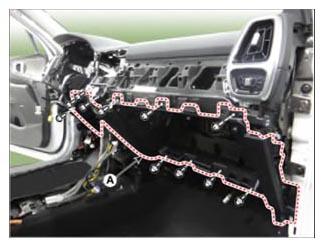

- Remove the crash pad center panel (A) by removing the mounting screws and bolts.

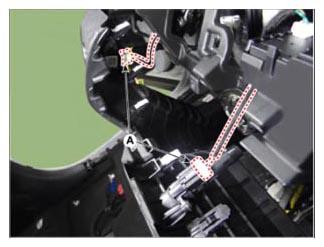

- Disconnect the connectors (A).
