Removal And Installation: Removal

WARNING:

When working on the high voltage system, the work should be performed by technicians who have completed the relevant training. A lack of understanding of the high voltage system can lead to serious accidents due to electric shock or short circuit.
When working on the high voltage system or related components, be sure to observe and be aware of the "HIGH VOLTAGE SYSTEM GENERAL SAFETY INFORMATION AND CAUTION ". If not, it may cause serious accidents due to electric shock or short circuit.

Remove the cluster.
(Refer to Instrument Cluster - "CLUSTER ")

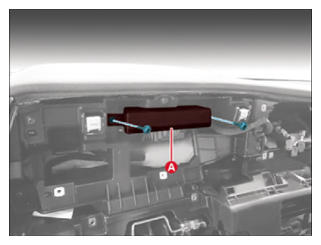

Remove the crash pad antenna (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

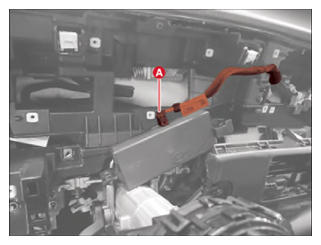

Disconnect the crash pad antenna connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

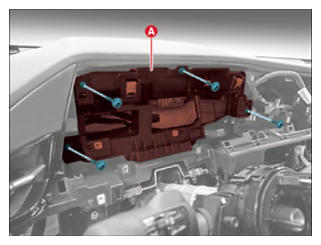

Remove the cluster support bracket (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.

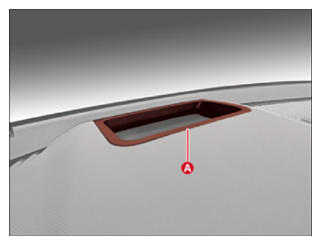

Remove the Head Up Display (HUD) cover (A).

Courtesy of KIA MOTORS AMERICA, INC.

Courtesy of KIA MOTORS AMERICA, INC.

Information

Clip position: Dotted circles

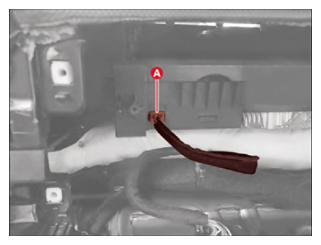

Disconnect the Head Up Display (HUD) unit connector (A).

Courtesy of KIA MOTORS AMERICA, INC.

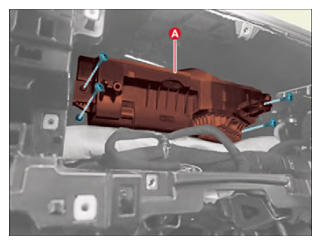

Remove the Head Up Display (HUD) unit (A) after removing the screws.

Courtesy of KIA MOTORS AMERICA, INC.
