Crash Pad Upper Panel

  1. Remove the front pillar trim.

    (Refer to Interior Trim -  "FRONT PILLAR TRIM ")

  2. Remove the crash pad side cover.

    (Refer to Crash Pad -  "CRASH PAD SIDE COVER ")

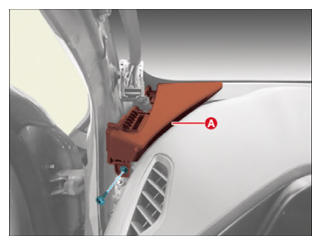

  3. Remove the screw and remove the crash pad upper panel (A).
    G15789785Courtesy of KIA MOTORS AMERICA, INC.
    G15789786Courtesy of KIA MOTORS AMERICA, INC.

    Information

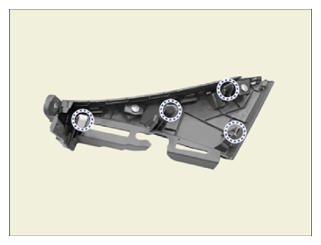

    Clip position:  Dotted circles
