Crash Pad Center Panel

  1. Remove the crash pad center garnish and upper garnish [Passenger's side].

    (Refer to Crash Pad -  "CRASH PAD GARNISH ")

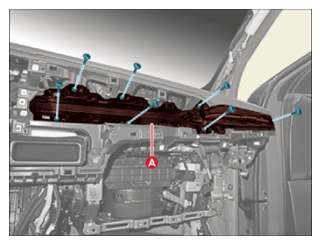

  2. Remove the screws and remove the crash pad center panel (A).
    G15789783Courtesy of KIA MOTORS AMERICA, INC.

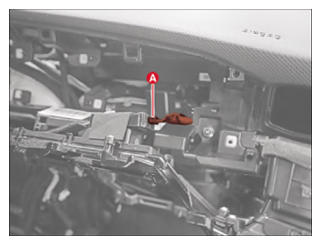

  3. Disconnect the connector (A).
    G15789784Courtesy of KIA MOTORS AMERICA, INC.
