Crash Pad Upper Garnish [Passenger's side]

  1. Remove the cluster.

    (Refer to Body Electrical System -  "REMOVAL AND INSTALLATIONCLUSTER ")

  2. Remove the display audio monitor.

    (Refer to Body Electrical System -  "AUDIO/AVNT MONITOR ")

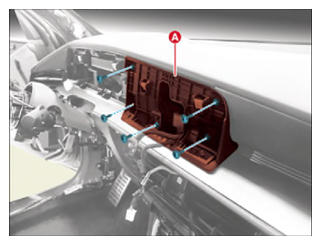

  3. Remove the display rear cover (A) after removing the screws.
    G15789795Courtesy of KIA MOTORS AMERICA, INC.

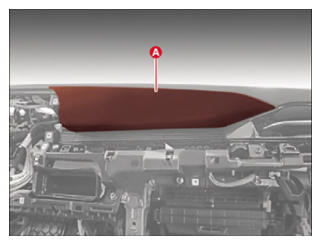

  4. Remove the crash pad upper garnish [Passenger's side] (A).
    G15789796Courtesy of KIA MOTORS AMERICA, INC.
    G15789797Courtesy of KIA MOTORS AMERICA, INC.

    Information

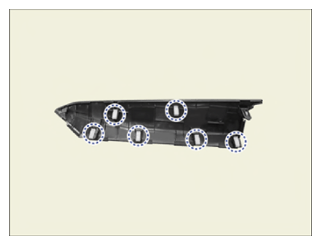

    Clip position:  Dotted circles
