Crash Pad Upper Garnish [Driver's side]

  1. Remove the cluster.

    (Refer to Body Electrical System -  "REMOVAL AND INSTALLATION ")

  2. Remove the crash pad upper garnish [Driver's side] (A).

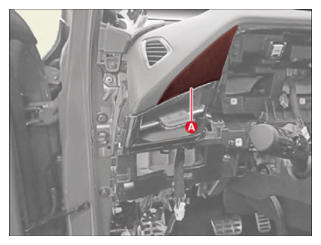

    G15789792Courtesy of KIA MOTORS AMERICA, INC.

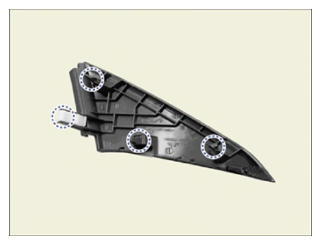

    G15789793Courtesy of KIA MOTORS AMERICA, INC.

    Information

    Clip position:  Dotted circles
